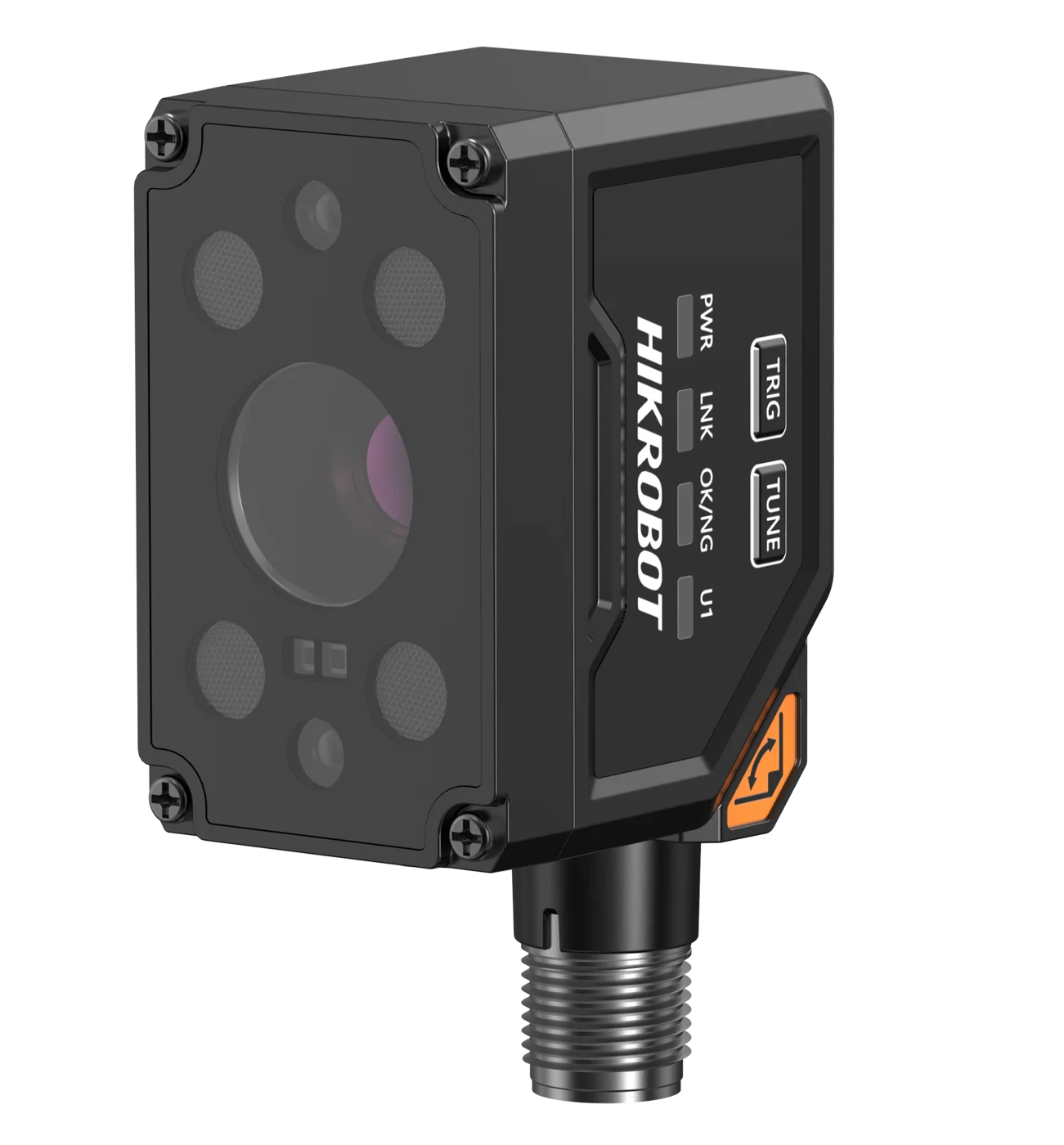

Hikrobot MV-SC2013XC-05M-WBN SC2000X series vision sensor, 1.3MP, Color, 5mm focal length
Model MV-SC2013XC-05M-WBN
Hikrobot MV-SC2013XC-05M-WBN SC2000X series vision sensor, 1.3MP, Color, 5mm focal length. Adopts embedded hardware platform for high-speed image processing. Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
Datasheet (PDF) - MV-SC2013XC-05M-WBNQuick start guide (PDF) - MV-SC2013XC-05M-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC2013XC-05M-WBN
Features
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
- Provides multiple I/O interfaces for input and output signals.
- Provides multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.
Specifications
| Model | MV-SC2013XC-05M-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, color measurement, color size, diameter measurement, line angle; Existence: Existence detection, anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existence; Count: Learning-based count, spot count, edge count, contour count, pattern count, color count; Recognition: Multi-object count, category recognition, code recognition, OCR, color contrast, color recognition; Logic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format output; Defect detection: Anomaly detection; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture |
| Solution capacity | Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.7 μm × 2.7 μm |
| Sensor size | 1/4" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 55 fps |
| Gain | 0 dB to 29 dB (analog gain) |
| Exposure time | 35 μs to 100 ms |
| Pixel format | RGB 8, Mono 8 |
| Mono/color | Color |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1; Supports device triggering via pressing side button. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled) |
| Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 5 mm |
| Lens cap | Transparent lens cap by default. Half-polarized and fully-polarized caps are optional. |
| Light source | White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional. |
| Aiming system | 2 green LED lights |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) |
| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4") |
| Weight | 118 g (0.3 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.27 kg |
