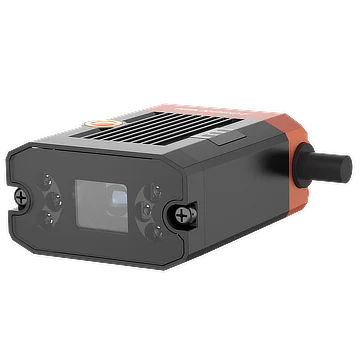

Hikrobot MV-SC2016EM-12S-WBN SC2000E series vision sensor, 1.6MP, Mono, 12mm focal length
Model MV-SC2016EM-12S-WBN
Hikrobot MV-SC2016EM-12S-WBN SC2000E series vision sensor, 1.6MP, Mono, 12mm focal length. Adopts embedded hardware platform for high-speed image processing. Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
Datasheet (PDF) - MV-SC2016EM-12S-WBNQuick start guide (PDF) - MV-SC2016EM-12S-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-SC2016EM-12S-WBN
Features
- Adopts embedded hardware platform for high-speed image processing.
- Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
- Multiple IO interfaces for input and output signals.
- Multiple indicators for displaying device status.
- Adopts light source to ensure uniform brightness in the illuminated area.
- Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.
Specifications
| Model | MV-SC2016EM-12S-WBN |
|---|---|
| Brand | Hikrobot |
| Vision tool | Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle; Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence; Count: Spot count, edge count, contour count, and pattern count; Recognition: Category recognition, classification registration, and OCR; Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison; Location: Fixture |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 16 μs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1 and external button input × 1 (BUTTON) |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Avg. 6 W @ 24 VDC; Max. 22 W @ 24 VDC |
| Lens mount | M12-mount, adjusting focus manually supported |
| Focal length | 12.4 mm |
| Lens cap | Transparent lens cap |
| Light source | White LED lamp |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0") |
| Weight | Approx. 220 g (0.5 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Client software | SCMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.41 kg |
