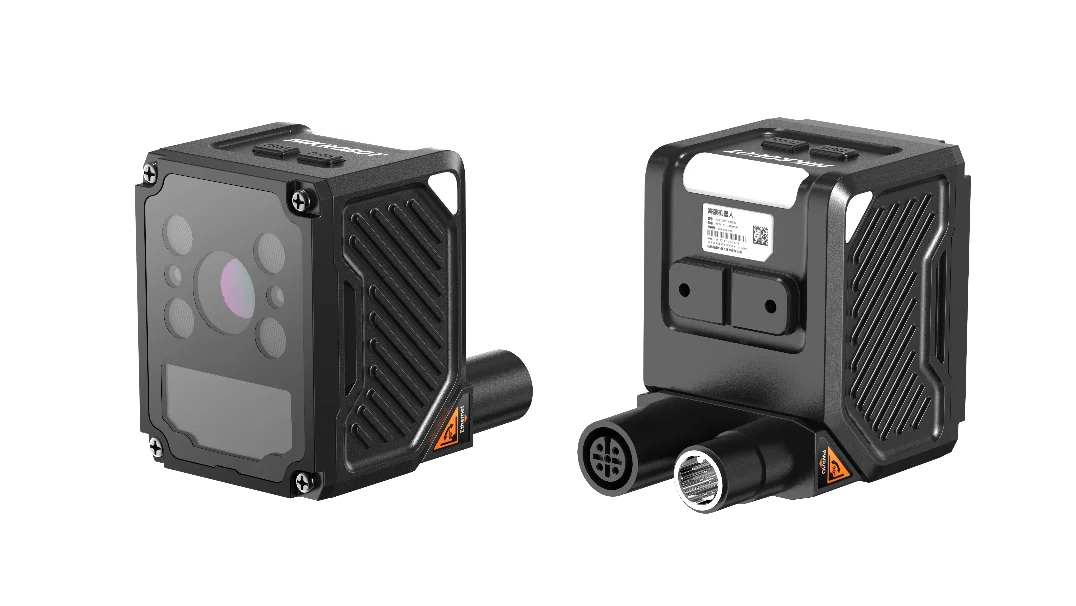

Hikrobot MV-ID3040RM-16M-WHP 4 MP rolling shutter, 16 mm focal length, High-brightness white light, Polarized, Industrial code reader
Model MV-ID3040RM-16M-WHP
Hikrobot MV-ID3040RM-16M-WHP 4 MP rolling shutter, 16 mm focal length, High-brightness white light, Polarized, Industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images
Datasheet (PDF, Chinese) - MV-ID3040RM-16M-WHPUser manual (PDF, Chinese) - MV-ID3040RM-16M-WHPCAD: 3D STEP + 2D DXF (ZIP) - MV-ID3040RM-16M-WHP
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Carefully selected sensor for high-speed capture of high-quality images
- Extremely easy to use: one-click auto-tuning
- Top and side status indicators plus projected light: code-reading status visible from every side
- Rotatable tail cable design adapts flexibly to tight spaces
- Polarized and clear multi-mode illumination for outstanding environmental adaptability
- Rich I/O interface for multiple input and output signals
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID3040RM-16M-WHP |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 20 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | Rolling shutter, Mono, 1/2.4”, 2 μm × 2 μm |
| Resolution | 2688 × 1536 |
| Exposure time | 540 μs ~ 200 ms |
| Gain | 0 ~ 40 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | 1 dB to 2.5 dB |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button. |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. power: 5 W @ 24 VDC (built-in light on); Max. power: 19 W @ 24 VDC (built-in light on) |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Clear + polarized, Clear optional, Polarizing lens cover |
| Light source | Red spot light, Spot light: white/blue/IR optional |
| Aiming system | Red LED |
| Indicator | Device body indicator, reading result indicator |
| Shell material | Metal |
| Dimension | Straight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5") |
| Weight | Approx. 185 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.36 kg |
