Fixed code readers

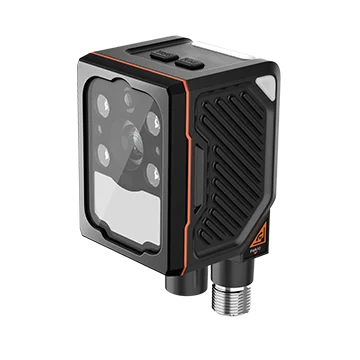

Hikrobot MV-ID3016XM-08L-RBN ID3000mini, 1.6 MP resolution, 08 mm focal length, Red light, Liquid lens focus
Model MV-ID3016XM-08L-RBN
Hikrobot MV-ID3016XM-08L-RBN ID3000mini, 1.6 MP resolution, 08 mm focal length, Red light, Liquid lens focus. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images
Datasheet (PDF, Chinese) - MV-ID3016XM-08L-RBNUser manual (PDF, Chinese) - MV-ID3016XM-08L-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID3016XM-08L-RBN
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Carefully selected sensor for high-speed capture of high-quality images
- Liquid-lens models combine with ToF for fast image setup and real-time focusing
- Extremely easy to use: one-click auto-tuning
- Top and side status indicators plus projected light: code-reading status visible from every side
- Rotatable tail cable design adapts flexibly to tight spaces
- Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
- Rich I/O interface for multiple input and output signals
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID3016XM-08L-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 110 codes/s |
| Sensor type | CMOS, Global shutter, Mono, 1/2.9”, 3.45 μm × 3.45 μm |
| Resolution | 1408 × 1024 |
| Exposure time | 25 μs ~ 30000 μs |
| Gain | 0 ~ 24 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 6.2 W @ 24 VDC (light source enabled); Max.: 16.8 W @ 24 VDC (light source enabled) |
| Focal length | 8 mm |
| Field of view | 33°(H) x 29°(V) |
| Lens mount | D14-mount, liquid lens focusing |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | Red spot light and white diffuse light, Spot light: white/blue/IR optional |
| Aiming system | Orange LED |
| Indicator | Device body indicator, reading result indicator |
| Shell material | Metal |
| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") |
| Weight | Approx. 195 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Operating temp.: 0 to 45 °C, ; Storage temp.: -30 to 70 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.37 kg |
