Fixed code readers

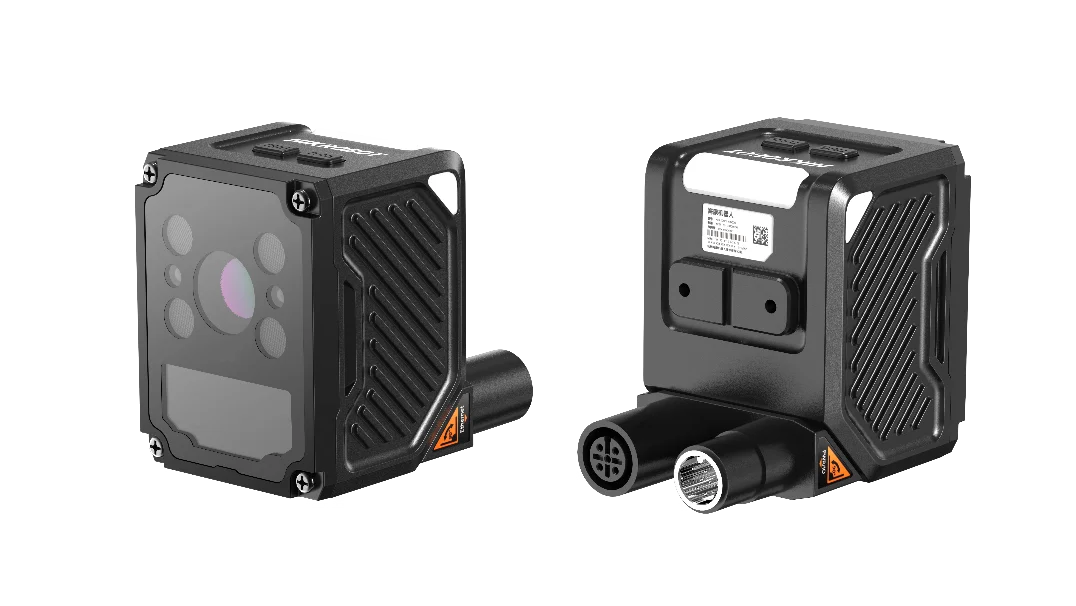

Hikrobot MV-ID3040RM-00C-NNN 4 MP rolling shutter, C-mount, No lens, No light, Industrial code reader with clear lens cover
Model MV-ID3040RM-00C-NNN
Hikrobot MV-ID3040RM-00C-NNN 4 MP rolling shutter, C-mount, No lens, No light, Industrial code reader with clear lens cover. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images
Datasheet (PDF, Chinese) - MV-ID3040RM-00C-NNNUser manual (PDF, Chinese) - MV-ID3040RM-00C-NNNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID3040RM-00C-NNN
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Carefully selected sensor for high-speed capture of high-quality images
- Extremely easy to use: one-click auto-tuning
- Top and side status indicators plus projected light: code-reading status visible from every side
- Rotatable tail cable design adapts flexibly to tight spaces
- Polarized and clear multi-mode illumination for outstanding environmental adaptability
- Rich I/O interface for multiple input and output signals
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID3040RM-00C-NNN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 58 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | Rolling shutter, Mono, 1/2.4”, 2 μm × 2 μm |
| Resolution | 2688 × 1536 |
| Exposure time | 52μs ~ 1000 ms |
| Gain | 0 ~ 40 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | 1 dB to 2.5 dB |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button. |
| Power supply | 12 ~ 24 VDC |
| Power consumption | Avg. power: 3.5 W @ 24 VDC (built-in light on); Max. power: 8 W @ 24 VDC (built-in light on) |
| Focal length | - |
| Field of view | - |
| Lens mount | C-Mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Aiming system | Red LED |
| Indicator | Device body indicator, reading result indicator |
| Shell material | Metal |
| Dimension | Straight: 80.1 mm × 55.6 mm × 115.9 mm; Right-angle: 58.5 mm × 55.6 mm × 137 mm |
| Weight | Approx. 277 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.49 kg |
