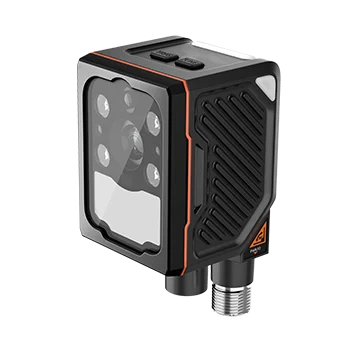

Hikrobot MV-ID3050XM-08M-RBN ID3050XM, 5MP, RED Light, 8mm focal length Industrial Code Reader
Model MV-ID3050XM-08M-RBN
Hikrobot MV-ID3050XM-08M-RBN ID3050XM, 5MP, RED Light, 8mm focal length Industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts CMOS sensor to acquire high-quality images.
Datasheet (PDF) - MV-ID3050XM-08M-RBNUser manual (PDF) - MV-ID3050XM-08M-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID3050XM-08M-RBN
Features
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS sensor to acquire high-quality images.
- Device with liquid lens combined with ToF can achieve fast image settings and real-time focusing.
- Supports one-key auto adjustment and easy to operate.
- Adopts multiple indicators displaying device status from different sides.
- Rotatable cable design for flexible mounting.
- Good environmental compatibility with Illuminating system.
- Adopts I/O interfaces for input and output signals.
- Ingress Protection Rating 67.
Specifications
| Model | MV-ID3050XM-08M-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (include GS1-128), CodaBar, EAN 8, EAN 13, ITF14, ITF25, UPCA, UPCE, Matrix 25, MSI, Code 11, Industrial 2of5, China Post, Pharmacode (one/two-track); 2D matrix codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin, Maxi Code; Stacked codes: PDF 417, MicroPDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 54 codes/sec |
| Sensor type | CMOS, global shutter, mono, 1/1.45", 3.45 μm × 3.45 μm |
| Resolution | 2432 × 2048 |
| Exposure time | 6 μs to 30000 μs |
| Gain | 0 dB to 24 dB |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.; Triggering the device is supported via pressing the top button. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 6.2 W @ 24 VDC (light source enabled); Max.: 16.8 W @ 24 VDC (light source enabled) |
| Focal length | 8 mm |
| Field of view | 54° (H) × 46° (V) |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Transparent + polarized + diffused lens cap |
| Light source | Red point light source + white diffused light source. White/blue/IR/UV point light source is optional. |
| Aiming system | Orange LED |
| Indicator | Device body indicator, reading result indicator |
| Shell material | Metal |
| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") |
| Weight | Approx. 195 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.37 kg |
