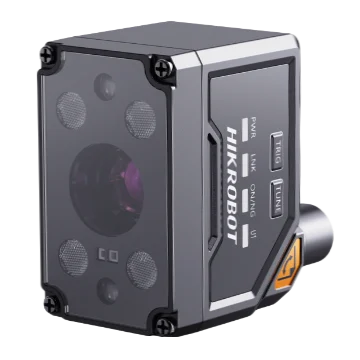

Hikrobot MV-ID2013XM-16M-RBN 1.3MP, 16mm focal length, red light, semi-polarized, network port auto-focus smart code reader
Model MV-ID2013XM-16M-RBN
Hikrobot MV-ID2013XM-16M-RBN 1.3MP, 16mm focal length, red light, semi-polarized, network port auto-focus smart code reader. Adopts high-robustness algorithm to accurately identify difficult codes, such as stained code, skewed code, low-contrast code, and code on laser-marked metal surfaces. Integrates digital WDR image processing algorithm, and combines with 4-channel light source control and multiple optical accessories for enhancing code clarity.
Datasheet (PDF) - MV-ID2013XM-16M-RBNUser manual (PDF) - MV-ID2013XM-16M-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2013XM-16M-RBN
Features
- Adopts high-robustness algorithm to accurately identify difficult codes, such as stained code, skewed code, low-contrast code, and code on laser-marked metal surfaces.
- Integrates digital WDR image processing algorithm, and combines with 4-channel light source control and multiple optical accessories for enhancing code clarity.
- Adopts modular design, rotatable cable, separated cable, and multi-surface mounting interfaces for flexible mounting.
- Supports multi-channel isolated I/O and multiple industrial protocols for integration into diverse automation systems.
- Compatible with IDMVS client software V5.0.0 and later, it can achieve functions such as auto focusing and one-click tuning for fast debugging.
Specifications
| Model | MV-ID2013XM-16M-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE; ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode (one/two-track); 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code; Stacked codes: PDF417, MicroPDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 80 codes/sec |
| Sensor type | Global shutter, mono, 1/4", 2.7 μm × 2.7 μm |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs to 1 sec |
| Gain | 0 dB to 30 dB |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, ModBus RTU, Fins, UDP |
| Digital I/O | 17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1) × 2, isolated output (LineOut 3/4) × 2, RS-232 × 1. Supports device triggering and factory reset via pressing side button. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled) |
| Focal length | 16 mm |
| Field of view | 12° (H) × 9° (V) |
| Lens mount | M12-mount, mechanical focus supported |
| Lens cap | Half-polarized lens cap by default. Transparent, fully-polarized, and ESD protective caps are optional. |
| Light source | Red light by default. White/blue/IR/UV/two-color (red/blue) light is optional. |
| Aiming system | 2 green LED lights |
| Indicator | Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1) |
| Shell material | Aluminum alloy |
| Dimension | Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
