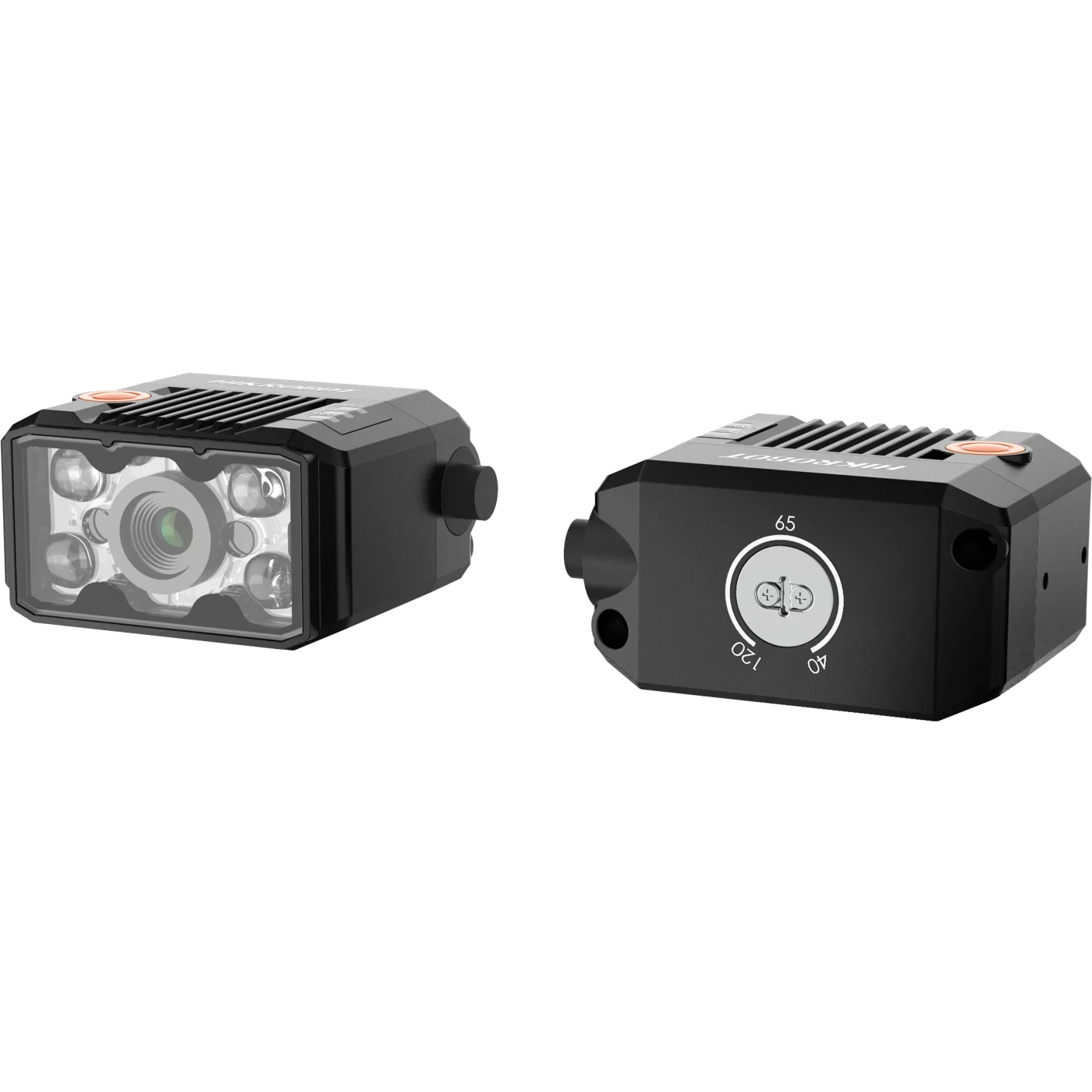

Hikrobot MV-ID2004M-06S-WBN-U 6mm focal length 0.4MP USB Ultra-Compact Industrial Code Reader
Model MV-ID2004M-06S-WBN-U
Hikrobot MV-ID2004M-06S-WBN-U 6mm focal length 0.4MP USB Ultra-Compact Industrial Code Reader. Compact design and small in size. Adopts aviation connector for single cable wiring.
Datasheet (PDF) - MV-ID2004M-06S-WBN-UUser manual (PDF) - MV-ID2004M-06S-WBN-UCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2004M-06S-WBN-U
Features
- Compact design and small in size.
- Adopts aviation connector for single cable wiring.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple I/O interfaces and plug-in power interface.
Specifications
| Model | MV-ID2004M-06S-WBN-U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 60 fps |
| Max. reading speed | 38 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/2.9" |
| Resolution | 704 × 540 |
| Exposure time | 16 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Mono | Mono |
| Communication protocol | SmartSDK, USB |
| Data interface | USB 3.0 |
| Digital I/O | 17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported. |
| Power supply | 5 VDC (USB 3.0 provides power supply) |
| Max. power consumption | Avg. 3 W @ 5 VDC, max. 5 W @ 5 VDC |
| Focal length | 6.72 mm |
| Lens mount | M10-mount, adjusting focus manually supported |
| Working distance | 40 mm to 120 mm |
| Ambient illumination | 0 lux to 50000 lux |
| Light source | White |
| Aiming system | Green LED |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Ingress protection | IP65 |
| Weight | Approx. 160 g (0.4 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.32 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the ID2000 Series Industrial Code Reader series
