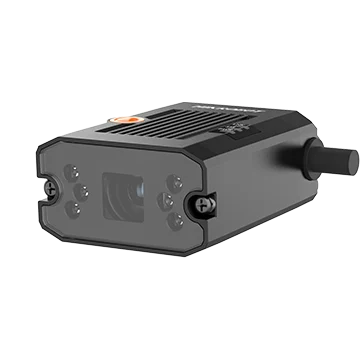

Hikrobot MV-ID2013M-25S-RBN 1.3MP long-Lens Ultra-Compact Industrial Code Reader(25mm)
Model MV-ID2013M-25S-RBN
Hikrobot MV-ID2013M-25S-RBN 1.3MP long-Lens Ultra-Compact Industrial Code Reader(25mm). Compact design and small in size. Adopts focus knob for adjusting focusing manually.
Datasheet (PDF) - MV-ID2013M-25S-RBNUser manual (PDF) - MV-ID2013M-25S-RBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2013M-25S-RBN
Features
- Compact design and small in size.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
- Supports multiple communication protocols, including SmartSDK, TCP Server, Serial, FTP, TCP Client, Profinet, Melsec/SLMP, Ethernet/IP, Modbus, UDP, and Fins.
Specifications
| Model | MV-ID2013M-25S-RBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode; 2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin; Stacked codes: PDF 417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 4 μm × 4 μm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Mono | Mono |
| Communication protocol | SmartSDK, TCP Server, Serial, FTP, TCP Client, Profinet, Melsec/SLMP, Ethernet/IP, Modbus, UDP, and Fins |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable bi-directional non-isolated I/O × 2 (Line 0/1), RS-232 × 1.; Supports device triggering via pressing button on side. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | Approx. 24 W @ 24 VDC |
| Focal length | 25 mm |
| Lens mount | M12-mount, adjusting focus manually supported |
| Working distance | 170 mm to 200 mm |
| Ambient illumination | 0 lux to 50000 lux |
| Light source | Red |
| Aiming system | Not supported |
| Dimension | 46 mm × 25 mm × 57.6 mm (1.8" × 1.0" × 2.3") |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Ingress protection | IP65 |
| Weight | Approx. 215 g (0.5 lb.) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.40 kg |
