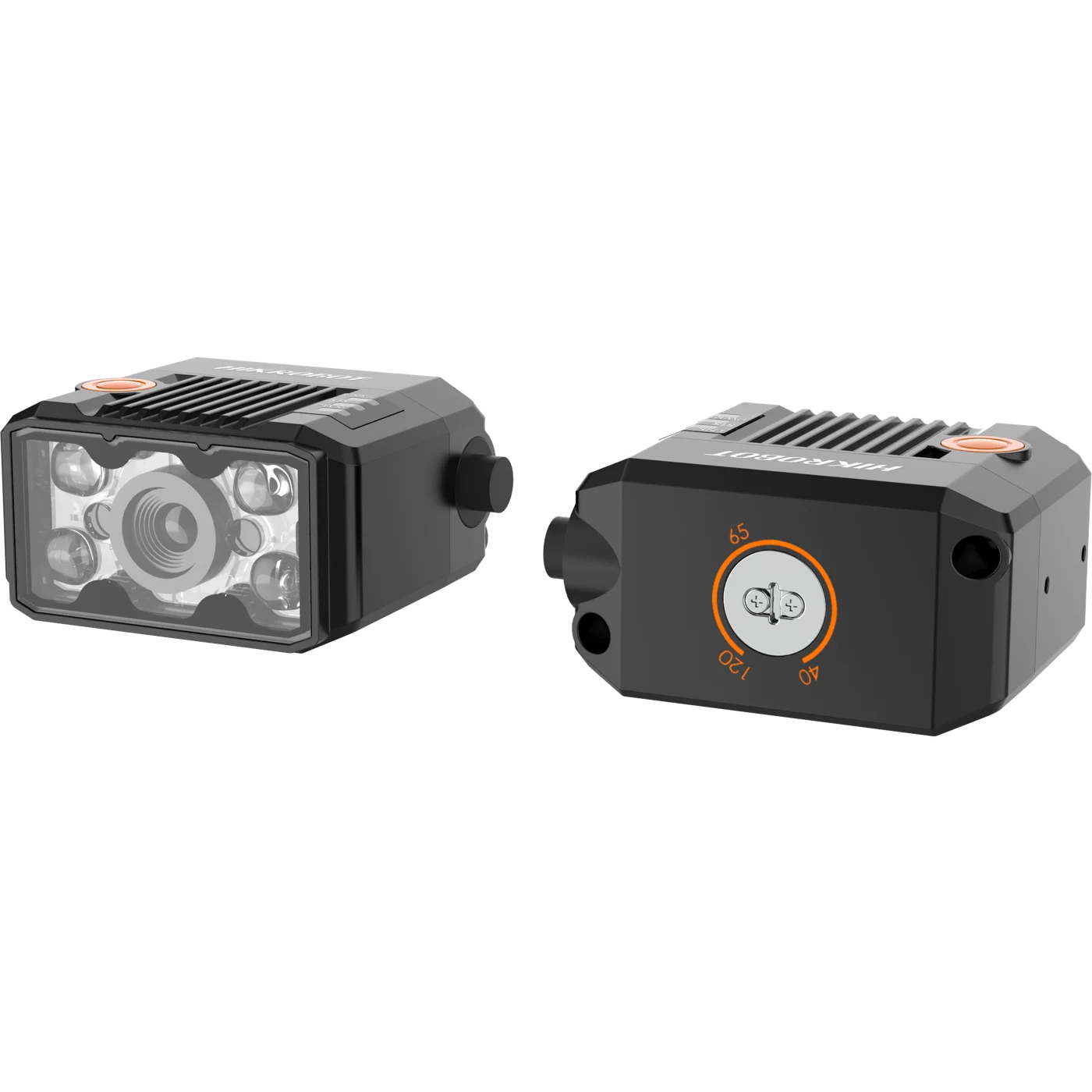

Hikrobot MV-ID2013M-06S-WBP 6mm focal length 1.3MP Ultra-Compact Industrial Code Reader
Model MV-ID2013M-06S-WBP
Hikrobot MV-ID2013M-06S-WBP 6mm focal length 1.3MP Ultra-Compact Industrial Code Reader. Built-in deep learning algorithm to read codes with good robustness. Compact design and small in size.
Datasheet (PDF) - MV-ID2013M-06S-WBPUser manual (PDF) - MV-ID2013M-06S-WBPCAD: 3D STEP + 2D DXF (ZIP) - MV-ID2013M-06S-WBP
Features
- Built-in deep learning algorithm to read codes with good robustness.
- Compact design and small in size.
- Adopts LED aiming light to help aim codes.
- Adopts focus knob for adjusting focusing manually.
- Adopts multiple IO interfaces and plug-in power interface.
Specifications
| Model | MV-ID2013M-06S-WBP |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 4 μm × 4 μm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Mono | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1; Device trigger via pressing button on side supported. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | Approx. 10.6 W @ 24 VDC |
| Focal length | 6.72 mm |
| Lens mount | M10-mount, adjusting focus manually supported |
| Working distance | 40 mm to 120 mm |
| Ambient illumination | 0 lux to 50000 lux |
| Light source | White (Polarized) |
| Aiming system | Green LED |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS) |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP65 |
| Humidity | 20% RH to 95% RH (no condensation) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.32 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the ID2000 Series Industrial Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID2013EMI-05-WBP-U | 1.3 MP, 4.63 mm lens | Price on request | 4 in stock | View |
| MV-ID2013EMI-05N-RBN | 1.3 MP, 4.63 mm lens | Price on request | 5 in stock | View |
| MV-ID2013EMI-05N-RBN-S | 1.3 MP, 4.63 mm lens | Price on request | 4 in stock | View |
| MV-ID2013EMI-05N-RBN-U | 1.3 MP, 4.63 mm lens | Price on request | 3 in stock | View |
| MV-ID2013EMI-05N-RBN-SU | 1.3 MP, 4.63 mm lens | Price on request | 5 in stock | View |
| MV-ID2013EMI-05N-RBP | 1.3 MP, 4.63 mm lens | Price on request | 4 in stock | View |
| MV-ID2013EMI-05H-RBN | 1.3 MP, 4.63 mm lens | Price on request | 4 in stock | View |
| MV-ID2013EMI-05H-RBN-S | 1.3 MP, 4.63 mm lens | Price on request | 4 in stock | View |
| MV-ID2013EMI-05H-RBN-U | 1.3 MP, 4.63 mm lens | Price on request | 4 in stock | View |
| MV-ID2013EMI-05H-RBN-SU | 1.3 MP, 4.63 mm lens | Price on request | 2 in stock | View |
| MV-ID2013EMI-05H-RBP | 1.3 MP, 4.63 mm lens | Price on request | 2 in stock | View |
| MV-ID2004M-06S-WBN-U | 0.4 MP, 1/2.9", 6.72 mm lens | Price on request | 5 in stock | View |
| MV-ID2013M-16S-RBN | 1.3 MP, 1/2.7", 16 mm lens | Price on request | 2 in stock | View |
| MV-ID2013M-25S-RBN | 1.3 MP, 1/2.7", 25 mm lens | Price on request | 3 in stock | View |
| MV-ID2013XM-05M-RBN | 1.3 MP, 5 mm lens | Price on request | 3 in stock | View |
| MV-ID2013XM-08M-RBN | 1.3 MP, 8 mm lens | Price on request | 4 in stock | View |
| MV-ID2013XM-12M-RBN | 1.3 MP, 12 mm lens | Price on request | 4 in stock | View |
| MV-ID2013XM-16M-RBN | 1.3 MP, 16 mm lens | Price on request | 5 in stock | View |
| MV-ID2013XM-08L-RBN | 1.3 MP, 8 mm lens | Price on request | 2 in stock | View |
| MV-ID2013XM-12L-RBN | 1.3 MP, 12 mm lens | Price on request | 4 in stock | View |
| MV-ID2013XM-16L-RBN | 1.3 MP, 16 mm lens | Price on request | 5 in stock | View |
| MV-ID2013XM-05M-RBN-U | 1.3 MP, 5 mm lens | Price on request | 2 in stock | View |
| MV-ID2013XM-08M-RBN-U | 1.3 MP, 8 mm lens | Price on request | 3 in stock | View |
| MV-ID2013XM-12M-RBN-U | 1.3 MP, 12 mm lens | Price on request | 5 in stock | View |
See all 62 models in the ID2000 Series Industrial Code Reader series
