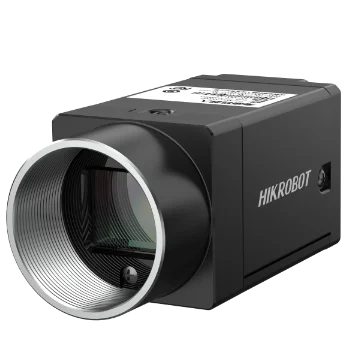

Hikrobot MV-CU050-90GC(NPOE) 5 MP GigE area scan camera, GMAX2505, Color, Without PoE
Model MV-CU050-90GC(NPOE)
Hikrobot MV-CU050-90GC(NPOE) 5 MP GigE area scan camera, GMAX2505, Color, Without PoE. Low-power platform Manual adjustment of gain, exposure time, LUT, gamma correction and more
Datasheet (PDF, Chinese) - MV-CU050-90GC(NPOE)User manual (PDF, Chinese) - MV-CU050-90GC(NPOE)CAD: 3D STEP + 2D DXF (ZIP) - MV-CU050-90GC(NPOE)
Features
- Low-power platform
- Manual adjustment of gain, exposure time, LUT, gamma correction and more
- Custom ROI with horizontal and vertical mirroring
- Compact: 29 mm × 29 mm × 47.6 mm for tight installation requirements
- Compliant with the GigE Vision V2.0 protocol and GenICam standard for seamless connection to third-party software platforms
Specifications
| Model | MV-CU050-90GC(NPOE) |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | GMAX2505 |
| Pixel size | 2.5 μm×2.5 μm |
| Sensor size | 1/2” |
| Resolution | 2600 × 2160 |
| Max. frame rate | 21 fps@2600 x 2160 Bayer BG 8 |
| Dynamic range | 63.8 dB |
| SNR | 37 dB |
| Gain | 0 ~ 12 dB |
| Exposure time | 3 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer BG 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | 2.5 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 47.6 mm |
| Weight | Approx. 117 g (0.3 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.26 kg |
