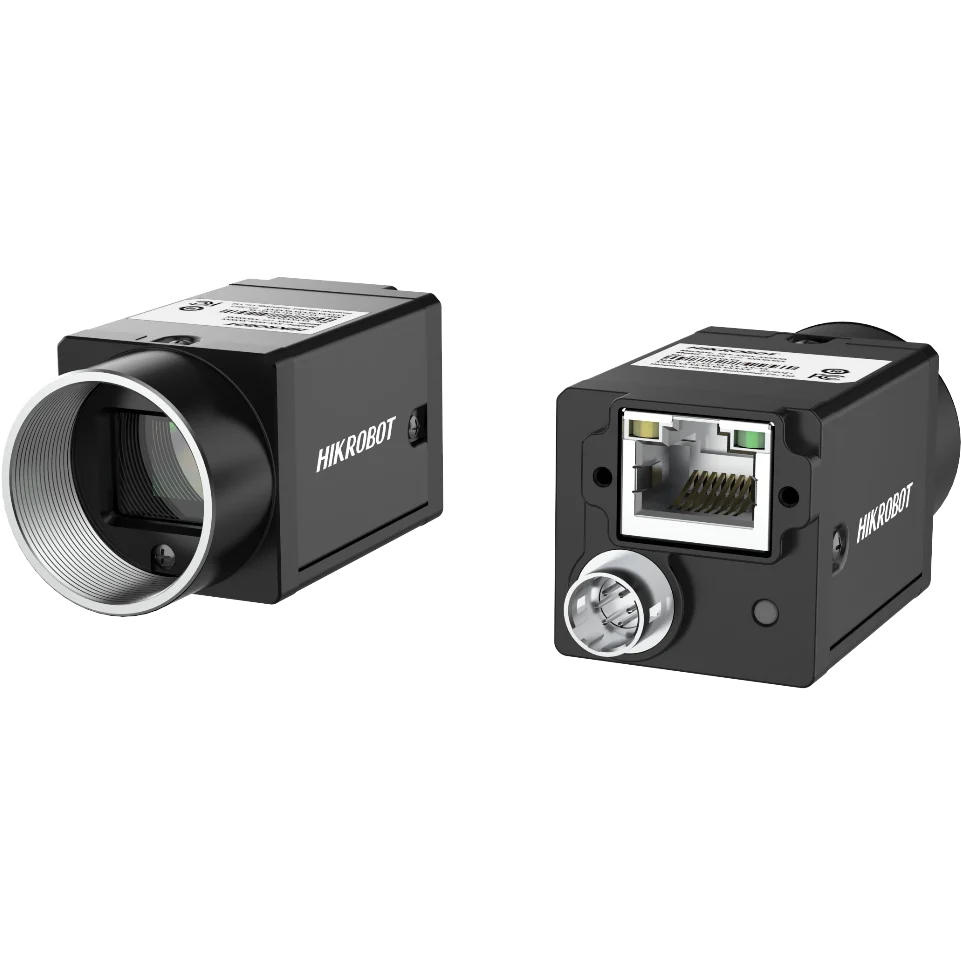

Hikrobot MV-CU060-60GC 6MP Area Scan Camera, GigE, Color
Model MV-CU060-60GC
Hikrobot MV-CU060-60GC 6MP Area Scan Camera, GigE, Color. Adopts low consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
Datasheet (PDF) - MV-CU060-60GCUser manual (PDF) - MV-CU060-60GCCAD: 3D STEP + 2D DXF (ZIP) - MV-CU060-60GC
Features
- Adopts low consumption design with stable performance.
- Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Adopts compact design to meet small spatial requirements.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU060-60GC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | BSI |
| Pixel size | 2 μm × 2 μm |
| Sensor size | 1/2.4" |
| Resolution | 3200 × 1944 |
| Max. frame rate | 19 fps @ 3200 × 1944 Bayer BG 8 |
| Dynamic range | 64 dB |
| SNR | 33.8 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 52 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Bayer BG 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000Mbit/s), compatible with Fast Ethernet (100Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | Typ. 1.6 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
