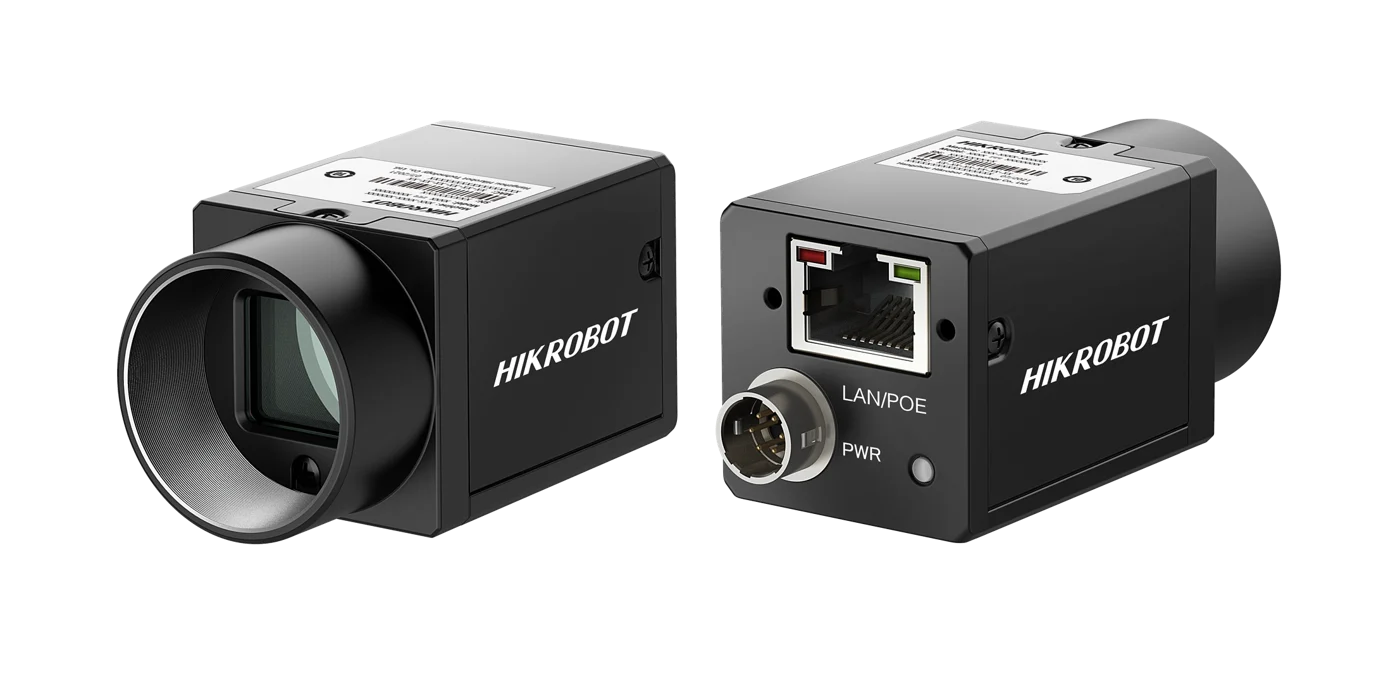

Hikrobot MV-CU200-20GM V2 20MP Area Scan Camera, GigE, V2, AR2020, Mono
Model MV-CU200-20GM V2
Hikrobot MV-CU200-20GM V2 20MP Area Scan Camera, GigE, V2, AR2020, Mono. Adopts low power consumption design with stable performance. Supports auto and manual adjustment of gain, exposure time, etc.
Features
- Adopts low power consumption design with stable performance.
- Supports auto and manual adjustment of gain, exposure time, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU200-20GM V2 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | AR2020 |
| Pixel size | 1.4 μm × 1.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 5120 × 3840 |
| Max. frame rate | 5.9 fps @ 5120 × 3840 Mono 8 |
| Dynamic range | 61 dB |
| SNR | 39 dB |
| Gain | 0 dB to 48 dB |
| Exposure time | 53 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10 Packed/12/12 Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Not supported |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC; PoE is optional |
| Power consumption | Typ. 2.0 W @ 12 VDC |
| Lens mount | C-mount |
| Dimension (without lens) | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.24 kg |
