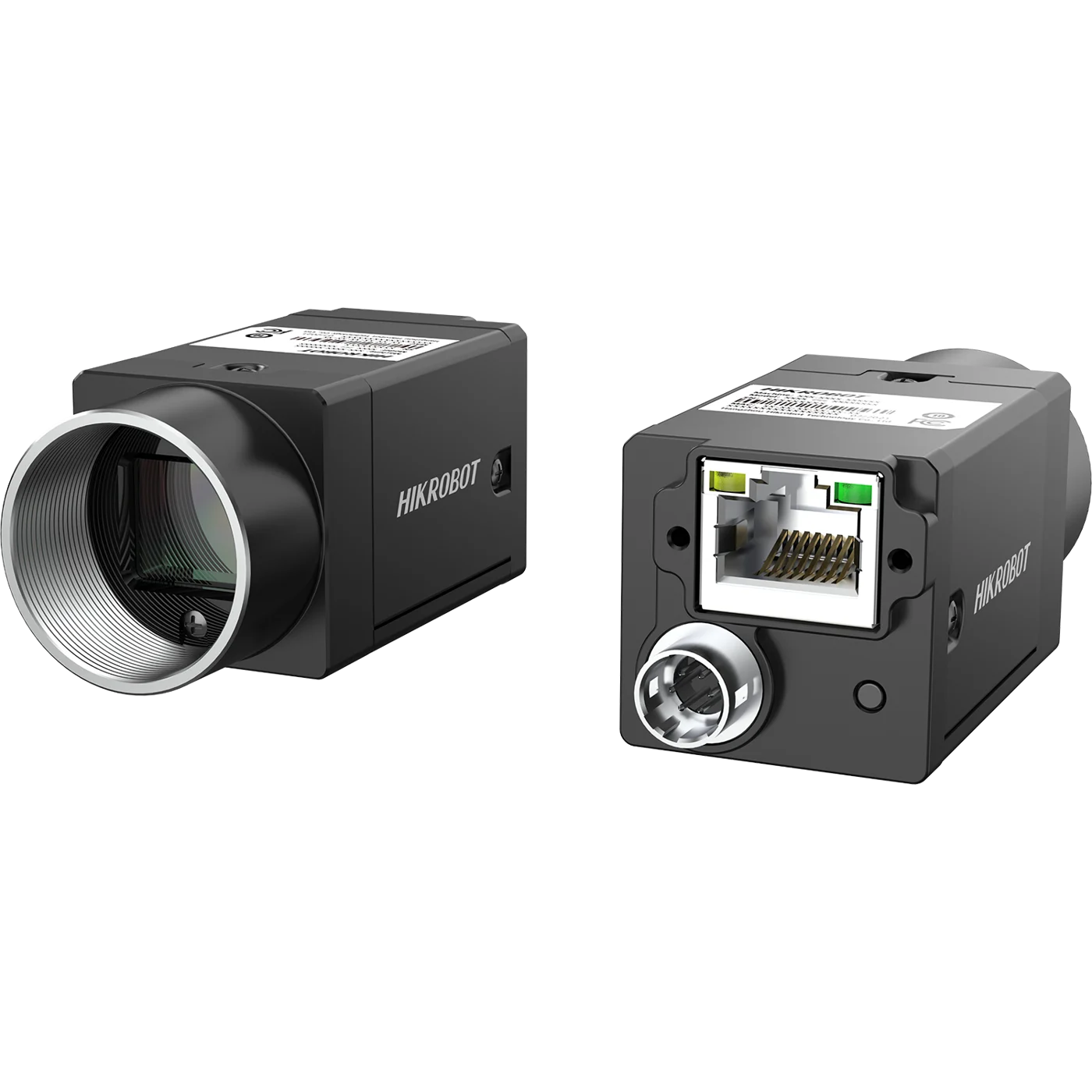

Hikrobot MV-CU050-90GM 5MP Area Scan Camera, GigE, GMAX2505, Mono
Model MV-CU050-90GM
Hikrobot MV-CU050-90GM 5MP Area Scan Camera, GigE, GMAX2505, Mono. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Supports customized ROI, horizontal and vertical reverse image output.
- Adopts compact design for flexible installation.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specifications
| Model | MV-CU050-90GM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | GMAX2505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1/2" |
| Resolution | 2600 × 2160 |
| Max. frame rate | 21 fps @2600 × 2160 Mono 8 |
| Dynamic range | 63.8 dB |
| SNR | 37 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 3 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | Typ. 2.3 W@12 VDC |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 47.6 mm (1.1" × 1.1" × 1.9") |
| Weight | Approx. 117 g (0.3 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.26 kg |
