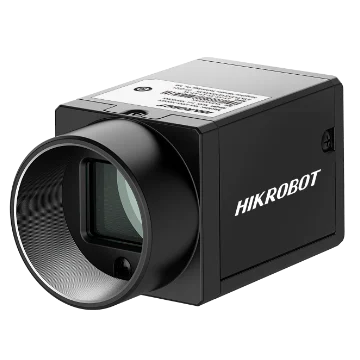

Hikrobot MV-CU020-90GM(NPOE) V2 2 MP GigE area scan camera, V2, GMAX4002, Mono, Without PoE
Model MV-CU020-90GM(NPOE) V2
Hikrobot MV-CU020-90GM(NPOE) V2 2 MP GigE area scan camera, V2, GMAX4002, Mono, Without PoE. Optimized hardware design: stable performance and low power consumption Automatic or manual gain and exposure time; manual LUT, gamma correction and more
Datasheet (PDF, Chinese) - MV-CU020-90GM(NPOE) V2User manual (PDF, Chinese) - MV-CU020-90GM(NPOE) V2CAD: 3D STEP + 2D DXF (ZIP) - MV-CU020-90GM(NPOE) V2
Features
- Optimized hardware design: stable performance and low power consumption
- Automatic or manual gain and exposure time; manual LUT, gamma correction and more
- Custom ROI with horizontal and vertical mirroring
- Compact: 29 mm × 29 mm × 30 mm for tight installation requirements
- Compatible with USB3 Vision and the GenICam standard for connection to third-party software platforms
Specifications
| Model | MV-CU020-90GM(NPOE) V2 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | GMAX4002 |
| Pixel size | 4 μm×4 μm |
| Sensor size | 1/1.7” |
| Resolution | 2048 × 1200 |
| Max. frame rate | 49 fps@2048 x 1200 Bayer GB 8 |
| Dynamic range | 66.9 dB |
| SNR | 40.8 dB |
| Gain | 0 ~ 11.1 dB |
| Exposure time | 4 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | 1.9 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64 bits, Linux 32/64bits |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
