Area scan cameras

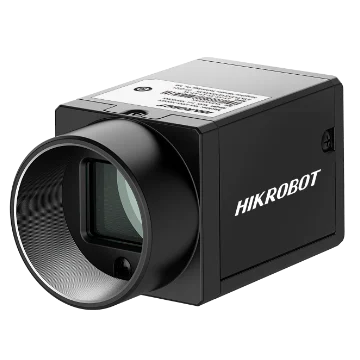

Hikrobot MV-CU050-30GM(NPOE) V2 5 MP GigE area scan camera, AR0521, V2, Mono, Without PoE
Model MV-CU050-30GM(NPOE) V2
Hikrobot MV-CU050-30GM(NPOE) V2 5 MP GigE area scan camera, AR0521, V2, Mono, Without PoE. Optimized hardware design: stable performance and low power consumption Automatic and manual adjustment of gain, exposure time and other parameters
Datasheet (PDF, Chinese) - MV-CU050-30GM(NPOE) V2User manual (PDF, Chinese) - MV-CU050-30GM(NPOE) V2CAD: 3D STEP + 2D DXF (ZIP) - MV-CU050-30GM(NPOE) V2
Features
- Optimized hardware design: stable performance and low power consumption
- Automatic and manual adjustment of gain, exposure time and other parameters
- Supports hardware trigger, software trigger and free-run modes
- Gigabit Ethernet interface: up to 100 m transmission without a repeater
- Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
Specifications
| Model | MV-CU050-30GM(NPOE) V2 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | AR0521 |
| Pixel size | 2.2 μm × 2.2 μm |
| Sensor size | 1/2.5'' |
| Resolution | 2592 × 1944 |
| Max. frame rate | 24 fps @2592 × 1944 Mono 8 |
| Dynamic range | 63 dB |
| SNR | 37 dB |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 21 μs ~ 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, PoE is optional |
| Power consumption | 1.78 W@12 VDC |
| Lens mount | C-Mount |
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | Windows 7/10/11 32/64bits, Linux 32/64bits |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | RoHS |
| Shipping weight (estimated) | 0.24 kg |
