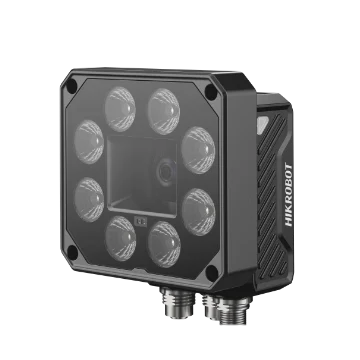

Hikrobot MV-CSP50M-12-150R 5 MP mono smart camera
Model MV-CSP50M-12-150R
Hikrobot MV-CSP50M-12-150R 5 MP mono smart camera. Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more Integrated VM algorithm platform software with free use of 140+ algorithm functions
Features
- Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more
- Integrated VM algorithm platform software with free use of 140+ algorithm functions
- Red/green/blue/white light, switchable as needed
- Rich I/O interface supports multiple input and output signals
- Supports multiple industrial protocols for easy integration
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-CSP50M-12-150R |
|---|---|
| Brand | Hikrobot |
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm×3.45 μm |
| Sensor size | 1/1.45" |
| Resolution | 2432 × 2048 |
| Max. frame rate | 80 fps |
| Gain | 0 dB ~ 18 dB |
| Exposure time | 16 μs ~ 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 17-pin M12 connector, 2 opto-isolated inputs (Line 0/1), 2 opto-isolated outputs (Line 4/5) |
| Extended interface | VGA × 1, and USB host × 1 |
| Power supply | 24 VDC |
| Power consumption | External fill light and multi-color fill light cannot be used at the same time; Average power:; 12 W@24 VDC (no external fill light, multi-color fill light off); 42 W@24 VDC (external fill light connected); 16.6 W@24 VDC (multi-color fill light on); Max. power:; 18 W@24 VDC (no external fill light, multi-color fill light off); 48 W@24 VDC (external fill light connected or multi-color fill light on) |
| Lens mount | M12-Mount |
| Focal length | 12 mm |
| Light source | Includes external light, Plus built-in red/green/blue/white four-color light (software switchable) |
| Indicator | Power indicator PWR, Network indicator LNK, Status indicator STS, User indicator U1/U2 |
| Dimension | 77 mm × 98 mm × 115.7 mm (excluding separate external light) |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device (bare unit, without mounting bracket) compliant with IEC 60068-2-6:2007 (10 to 55 Hz, Full amplitude 1.5 mm, X, Y, Z: 2 hours per direction) |
| Shock resistance | Device (bare unit, without mounting bracket) compliant with IEC 60068-2-27:2008 (30 g/11 ms, Half-sine wave, 6 axes, 500 shocks per axis, 3000 shocks in total) |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.15 kg |
