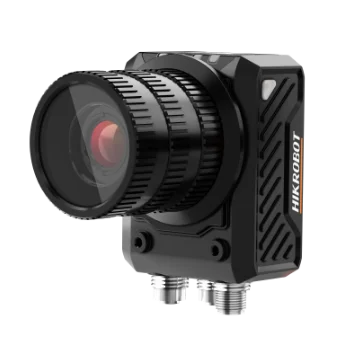

Hikrobot HIK-YJ6001-C12 Color smart camera
Model HIK-YJ6001-C12
Hikrobot HIK-YJ6001-C12 Color smart camera. Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more Integrated VM algorithm platform software with free use of 140+ algorithm functions
Features
- Embedded AI deep-learning algorithms for character recognition, object recognition, defect detection and more
- Integrated VM algorithm platform software with free use of 140+ algorithm functions
- Extensive interface expansion: multiple I/O, direct light drive, display output and more
- High-performance processor for faster, more efficient processing
- Supports multiple industrial protocols for easy integration
- Comprehensive status indicators show device status in real time for easy setup and maintenance
- IP67 protection for harsh industrial environments
Specifications
| Model | HIK-YJ6001-C12 |
|---|---|
| Brand | Hikrobot |
| Function module | VisionMaster algorithm development platform (incl. deep learning module) |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 60 fps |
| Gain | 0 dB ~ 15 dB |
| Exposure time | 16 μs ~ 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 17-pin M12 connector, 2 opto-isolated inputs (Line 0/1), 2 opto-isolated outputs (Line 4/5), 2 non-isolated configurable I/O (line 2/3), 1× RS-232, 1 light outputs (max. 30 W) |
| Extended interface | VGA × 1, and USB host × 1 |
| Power supply | 12~24 VDC |
| Power consumption | 12 W@12 VDC (without external fill light); 12 W@24 VDC (without external fill light); 42 W@24 VDC (with external fill light) |
| Lens mount | C-Mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | Power indicator PWR, Network indicator LNK, Status indicator STS, User indicator U1/U2 |
| Dimension | 116.3mm × 68.6mm × 101.8mm |
| Weight | 530g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.84 kg |
