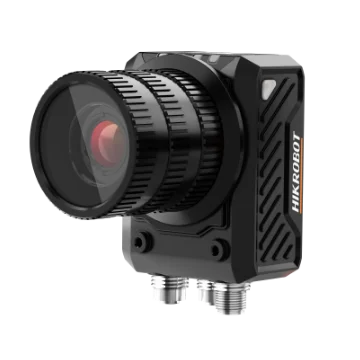

Hikrobot MV-SC6016C-00C-NNN/V2 SC6000 series Smart Camera, 1.6MP, Color, C-Mount
Model MV-SC6016C-00C-NNN/V2
Hikrobot MV-SC6016C-00C-NNN/V2 SC6000 series Smart Camera, 1.6MP, Color, C-Mount. Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc. Integrates VM functions, and supports more than 140 algorithms.
Datasheet (PDF) - MV-SC6016C-00C-NNN/V2Quick start guide (PDF) - MV-SC6016C-00C-NNN/V2CAD: 3D STEP + 2D DXF (ZIP) - MV-SC6016C-00C-NNN/V2
Features
- Adopts AI deep learning algorithm to achieve OCR, object recognition, defect detection, etc.
- Integrates VM functions, and supports more than 140 algorithms.
- Adopts multiple interfaces, and supports multiple-channel I/O, light source, display, etc.
- Adopts high-performance CPU with faster calculation performance and high efficiency.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
- Supports ingress protection IP67.
Specifications
| Model | MV-SC6016C-00C-NNN/V2 |
|---|---|
| Brand | Hikrobot |
| Function module | Vision Master Platform (include deep learning module) |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1408 × 1024 |
| Max. frame rate | 120 fps |
| Gain | 0 dB to 15 dB |
| Exposure time | 25 μs to 1 sec |
| Pixel format | Mono 8, RGB 8 |
| Mono/color | Color |
| Memory | 8 GB |
| Storage | 64 GB |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1 |
| Extended interface | VGA × 1, and USB host × 1 |
| Power supply | 24 VDC |
| Power consumption | Avg. 12 W @ 24 VDC (without external light source); Avg. 42 W @ 24 VDC (with external light source); Max. 18 W @ 24 VDC (without external light source); Max. 48 W @ 24 VDC (with external light source) |
| Lens mount | C-mount |
| Lens cap | Transparent lens cap |
| Light source | Not included |
| Indicator | Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2) |
| Dimension | 116.3 mm × 68.6 mm × 101.8 mm (4.6" × 2.7" × 4.0") |
| Weight | Approx. 530 g (1.2 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)* |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)* |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.84 kg |
