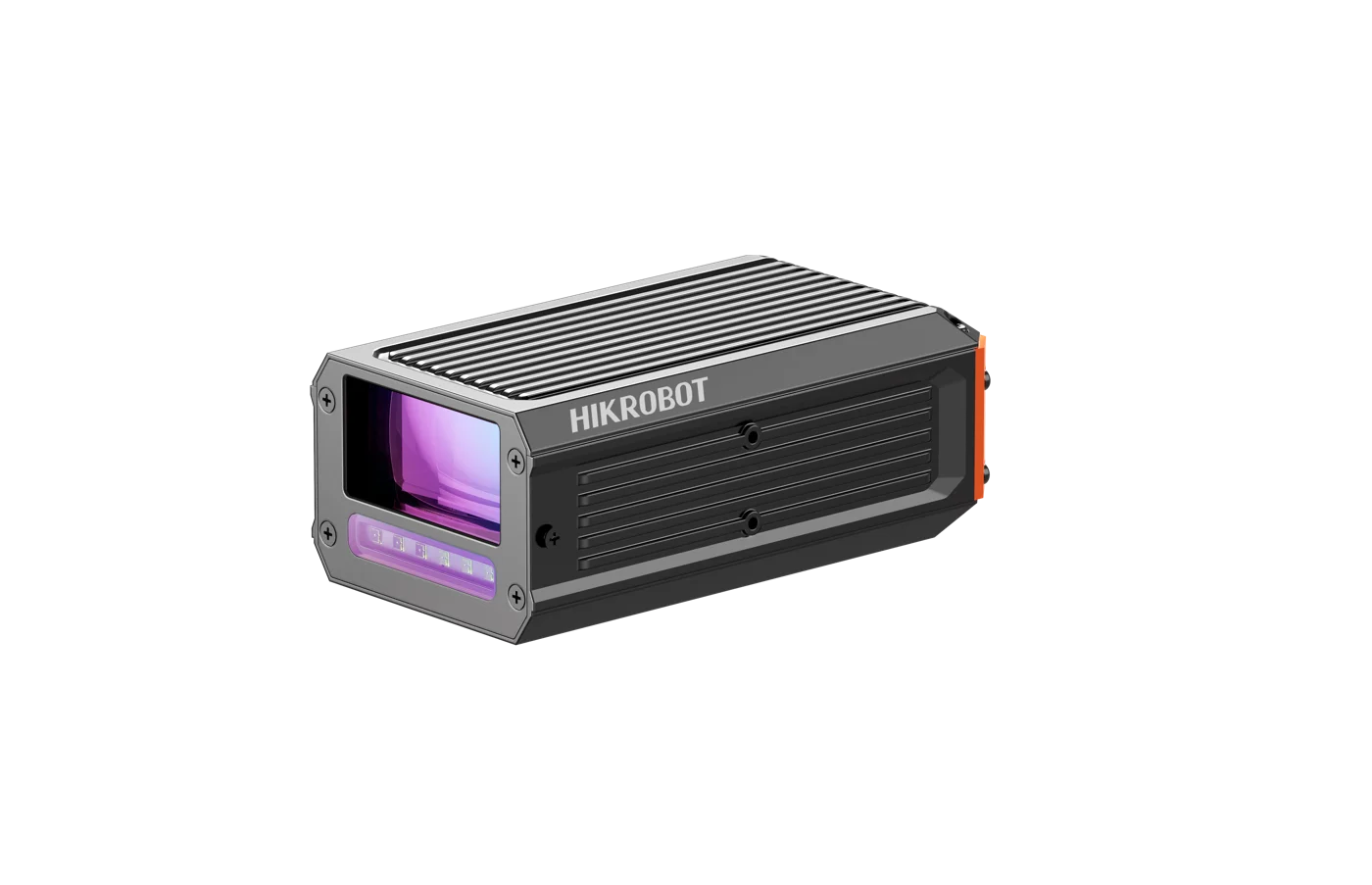

Hikrobot MV-SC6500P-AI-WID-RBN SC6500P Wafer ID Reader, Mono, Combined red light source
Model MV-SC6500P-AI-WID-RBN
Hikrobot MV-SC6500P-AI-WID-RBN SC6500P Wafer ID Reader, Mono, Combined red light source. Adopts AI algorithm to recognize wafer ID information. Supports advanced optical imaging system with multiple lighting methods.
Features
- Adopts AI algorithm to recognize wafer ID information.
- Supports advanced optical imaging system with multiple lighting methods.
- Integrates VM functions, and supports more than 140 algorithms.
- Adopts high-performance CPU with faster calculation performance and high efficiency.
- Supports multiple communication protocols.
- Supports indicators displaying device status for easy debugging and maintenance.
Specifications
| Model | MV-SC6500P-AI-WID-RBN |
|---|---|
| Brand | Hikrobot |
| Function module | Vision Master Platform (include deep learning module) and SCClient |
| Algorithm capability | SEMI OCR character, data matrix code, QR code, and barcode |
| Communication protocol | TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc. |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/3.4" |
| Resolution | 1408 × 576 |
| Max. frame rate | 120 fps |
| Gain | 0 dB to 37 dB |
| Exposure time | 25 μs to 1 sec |
| Pixel format | Mono 8 |
| Mono/color | Mono |
| LED | Red LED (RGB is supported by bar light) |
| Lighting method | Multiple lighting methods (bright field lighting and dark field lighting) |
| Illumination intensity | Configure in software |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (SYS) |
| Memory | 8 GB |
| Storage | 64 GB |
| Lens mount | M12-mount |
| Focus mode | Auto |
| Installation height | 40 mm to 50 mm (recommended) |
| Field of view (range) | 38 mm × 15 mm |
| Depth of field | ± 5 mm |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including non-isolated input × 1, non-isolated output × 1, and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | Avg. 11.5 W @ 24 VDC; Max. 18 W @ 24 VDC |
| Weight | Approx. 829 g (1.8 lb.) |
| Dimension | 127 mm × 69 mm × 49 mm (5" × 2.7" × 1.9") |
| Ingress protection | IP40 |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z) |
| Shock resistance | Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) |
| Certification | CE, KC |
| Shipping weight (estimated) | 1.26 kg |
