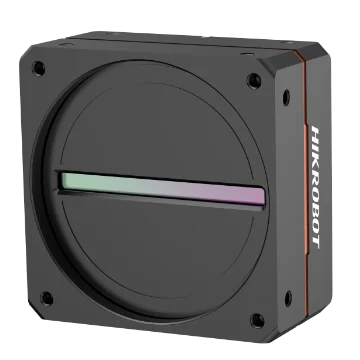

Hikrobot MV-CL162-91CM(V2.0) 16k mono Camera Link line scan camera, Dual-line, 3.5μm

Name: Hikrobot MV-CL162-91CM(V2.0) 16k mono Camera Link line scan camera, Dual-line, 3.5μm
Brand: Hikrobot
SKU: MV-CL162-91CM(V2.0)

Model MV-CL162-91CM(V2.0)

Hikrobot MV-CL162-91CM(V2.0) 16k mono Camera Link line scan camera, Dual-line, 3.5μm. Rich ISP processing, including noise reduction and manual Gamma correction, flat-field correction, LUT and black-level adjustment 2-TDI function with selectable imaging modes

Datasheet (PDF, Chinese) - MV-CL162-91CM(V2.0)User manual (PDF, Chinese) - MV-CL162-91CM(V2.0)CAD: 3D STEP + 2D DXF (ZIP) - MV-CL162-91CM(V2.0)

Features

Rich ISP processing, including noise reduction and manual Gamma correction, flat-field correction, LUT and black-level adjustment
2-TDI function with selectable imaging modes
Flexible exposure and acquisition modes, base line rate 50 kHz
Bidirectional I/O, flexibly configurable as input or output
Compact design with mounting holes on front and side panels for flexible installation
Compatible with Camera Link and the GenICam standard

Specifications

Model	MV-CL162-91CM(V2.0)
Brand	Hikrobot
Sensor type	CMOS
Pixel size	3.5 μm × 3.5 μm
Resolution	16384 × 2
Image mode	1-Line/2-TDI
Max. line rate	Full resolution: 10 kHz (Base), 20 kHz(Medium), 40 kHz(Full), 50 kHz(80-bit); With binning line-rate boost: 71 kHz@1-Line (full resolution), 60 kHz@2-TDI (full resolution); With ROI line-rate boost: 120 kHz@1-Line (6820 resolution or below), 60 kHz@2-TDI (6820 resolution or below)
Configuration mode	Base, Medium, Full, 80-bit
Tap geometry	1 × 2, 1 × 4, 1 × 8, 1×10
Channel	2/4/8/10 Taps
Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range	56.7 dB
SNR	37 dB
Gain	1.0 x
Exposure time	3 μs ~ 10 ms
Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Data interface	Camera Link (SDR connector); USB interface for updating firmware
Digital I/O	12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply	12 ~ 24 VDC
Power consumption	9.8 W@12 VDC
Lens mount	M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension	76 mm × 76 mm × 42.1 mm
Weight	Approx. 320 g (0.7 lb.)
Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Client software	MVS and frame grabber software meeting with Camera Link Protocol
Operating system	Windows 7/10/11 32/64bits
Compatibility	Camera Link V1.2, GenICam
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.55 kg
