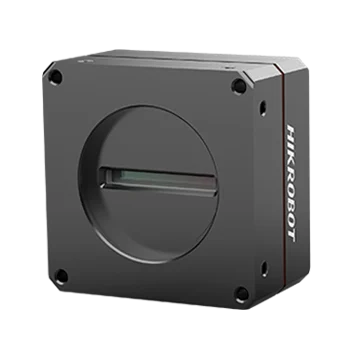

Hikrobot HIK-XS4K-042C 4096-pixel Camera Link color industrial line scan camera
Model HIK-XS4K-042C
Hikrobot HIK-XS4K-042C 4096-pixel Camera Link color industrial line scan camera. Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment Flexible exposure and acquisition modes, line rate up to 100 kHz
Features
- Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment
- Flexible exposure and acquisition modes, line rate up to 100 kHz
- Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
- Compatible with Camera Link and the GenICam standard
Specifications
| Model | HIK-XS4K-042C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm |
| Resolution | 4096 × 2 |
| Image mode | 1-Line |
| Max. line rate | 40 kHz@Mono 8 (Base), 50 kHz@RGB 8 (80-bit), 100 kHz@Bayer RGBG 8 (Full) |
| Configuration mode | Mono 8: Base; RGB 8: Base, Medium, 80-bit; Bayer RBGG 8: Base, Medium, Full |
| Tap geometry | Mono 8: 1 ×; RGB 8: 1 ×, 1 ×2, 1 × 10; Bayer RBGG 8: 1 × 2, 1 × 4, 1 × 8 |
| Channel | Mono 8: 2 Taps; RGB 8: 1/2/10 Taps; Bayer RBGG 8: 2/4/8 Taps |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz |
| Dynamic range | 65.6 dB |
| SNR | 40 dB |
| Gain | Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| Exposure time | 5 μs ~ 10 ms |
| Exposure mode | Auto exposure supported, Manual exposure, One-touch exposure; Fixed exposure time supported, Exposure time controlled by pulse width |
| Mono/color | Color |
| Pixel format | Mono 8, RGB 8, Bayer RBGG 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector for power and I/O: 4 bidirectional configurable I/O (Line 0/1/3/4); I/O via Camera Link (CC1/CC2/CC3/CC4) |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 6.1 W@12 VDC |
| Lens mount | M42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter |
| Dimension | 62 mm × 62 mm × 36.9 mm |
| Weight | Approx. 238 g (0.5 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | Windows XP/7/10/11 32/64 bits |
| Compatibility | Camera Link V2.1, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.43 kg |
