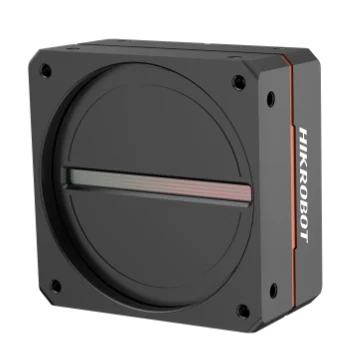

Hikrobot MV-CL083-92CC(V2.0) 8k pixels Linescan Cameras.Camera Link, Color
Model MV-CL083-92CC(V2.0)
Hikrobot MV-CL083-92CC(V2.0) 8k pixels Linescan Cameras.Camera Link, Color. Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, FFC correction, LUT, black level, etc. Supports RGB true color, multiple exposure and image acquisition modes.
Datasheet (PDF) - MV-CL083-92CC(V2.0)User manual (PDF) - MV-CL083-92CC(V2.0)CAD: 3D STEP + 2D DXF (ZIP) - MV-CL083-92CC(V2.0)
Features
- Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, FFC correction, LUT, black level, etc.
- Supports RGB true color, multiple exposure and image acquisition modes.
- Supports ROI to increase line rate.
- Supports bi-directional I/O wiring for flexible input/output settings.
- Compact design and flexible installation.
- Compatible with Camera Link Protocol and GenlCam Standard.
Specifications
| Model | MV-CL083-92CC(V2.0) |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 7 μm × 7 μm |
| Resolution | 8192 × 3 |
| Image mode | Supports 1-line |
| Max. line rate | 10.1 kHz (Base), 20.2 kHz (Medium), 33.7 kHz (80-bit); Increases line rate via ROI: Max. 66.6 kHz (4140 resolution and below) |
| Configuration mode | Base, Medium, 80-bit |
| Tap geometry | 1 × 1, 1 × 2, 1 × 10 |
| Tap number | 1 Tap, 2 Taps, 10 Taps |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Dynamic range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | Supports 1.0 × |
| Exposure time | 3 μs to 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure |
| Mono/color | Color |
| Pixel format | Mono 8/12, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | Camera Link; USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 9.9 W @ 12 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7") |
| Weight | Approx. 340 g (0.75 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V1.2, GenICam |
| Certification | CE, RoHS 2.0, KC |
| Shipping weight (estimated) | 0.58 kg |
