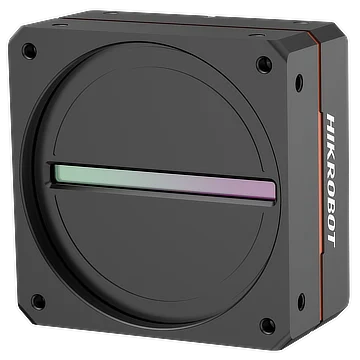

Hikrobot MV-CL161-41CM 16k Camera Link Line Scan Cameras, Mono
Model MV-CL161-41CM
Hikrobot MV-CL161-41CM 16k Camera Link Line Scan Cameras, Mono. Integrates multiple ISP technologies, and supports manual adjustment of Gamma correction, FFC correction, LUT, black level, etc. Supports multiple exposure and acquisition modes.
Datasheet (PDF) - MV-CL161-41CMUser manual (PDF) - MV-CL161-41CMCAD: 3D STEP + 2D DXF (ZIP) - MV-CL161-41CM
Features
- Integrates multiple ISP technologies, and supports manual adjustment of Gamma correction, FFC correction, LUT, black level, etc.
- Supports multiple exposure and acquisition modes.
- Adopts configurable bi-directional I/O hardware design.
- Compact design and flexible installation.
- Compatible with Camera Link Protocol and GenlCam Standard.
Specifications
| Model | MV-CL161-41CM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS |
| Pixel size | 3.5 μm |
| Resolution | 16384 × 1 |
| Image mode | 1-line |
| Max. line rate | 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), and 50 kHz (80-bit) |
| Configuration mode | Base, Medium, Full, 80-bit |
| Tap geometry | 1 × 2, 1 × 4, 1 × 8, 1 × 10 |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
| Dynamic range | 64.7 dB |
| SNR | 44.3 dB |
| Gain | Supports 1 ×, 2 ×, 4 ×, 8 × |
| Exposure time | 2 μs to 10 ms |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure |
| Mono | Mono |
| Pixel format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Trigger mode | External trigger, internal trigger |
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Data interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 7.2 W @ 12 VDC |
| Lens mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7") |
| Weight | Approx. 320 g (0.7 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V1.2, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.55 kg |
