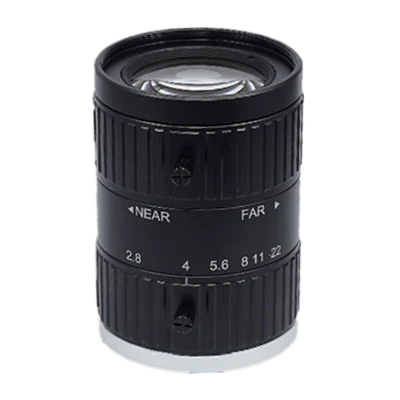

1'' 75 mm 12 MP FA lens (LS-XAC-7512F)
Model LS-XAC-7512F
1'' 75 mm 12 MP FA lens. High resolution with highly uniform sharpness across the image Low distortion, high relative illumination
Features
- High resolution with highly uniform sharpness across the image
- Low distortion, high relative illumination
- Maximum image circle Φ16 mm
- Excellent optical performance at different object distances
Specifications
| Model | LS-XAC-7512F |
|---|---|
| Focal length | 75 mm |
| F-number | F2.8 ~ F22 |
| Image size | Φ16 mm(1'') |
| Optical distortion | 0.75% |
| Minimum object distance | 0.5 m |
| Field of view | D (15.86 mm): 12.2°; H (12.45 mm): 9.8°; V (9.83 mm): 7.3° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M39 × 0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ42 × 60.3 mm |
| Weight | 187 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.36 kg |
