Machine vision lenses

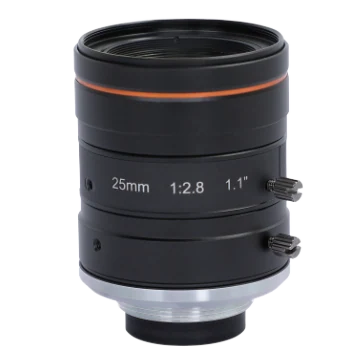

25mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF2528M-12MP)
Model LS-KF2528M-12MP
25mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution with highly uniform sharpness across the image Ultra-low distortion and high relative illumination
Features
- High resolution with highly uniform sharpness across the image
- Ultra-low distortion and high relative illumination
- Maximum sensor format 1.1''
- Supports ultra-short working distances with excellent optics at all object distances
Specifications
| Model | LS-KF2528M-12MP |
|---|---|
| Focal length | 25 mm |
| F-number | F2.8~F16 |
| Image size | Φ17.6 mm(1.1'') |
| Optical distortion | 0.40% |
| Minimum object distance | 0.15 m |
| Field of view | D(17.52mm):36.7°; H(14.14mm):29.6°; V(10.35mm):22.1° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5*0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ38.6×49.32 mm |
| Weight | 133 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.29 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the KF series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF0818M-12MP | $209.00 | 5 in stock | View | |
| LS-KF1228M-12MP | $209.00 | 3 in stock | View | |
| LS-KF1628M-12MP | $209.00 | 3 in stock | View | |
| LS-KF3528M-12MP | $209.00 | 3 in stock | View | |
| LS-KF7528M-12MP | $209.00 | 5 in stock | View | |
| LS-KF5028M-12MP | $209.00 | 5 in stock | View | |
| LS-XAC-25250F | $209.00 | 5 in stock | View | |
| LS-XAC-7512F | $209.00 | 3 in stock | View |
