Machine vision lenses

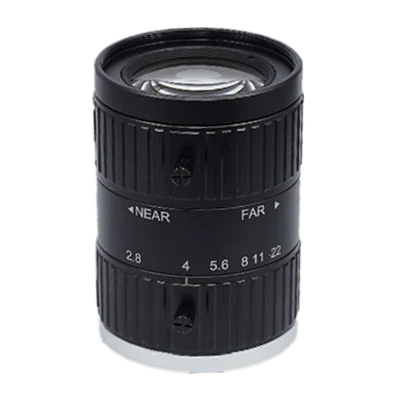

75mm, F2.8, 1", 12MP Lens, C-Mount (LS-KF7528M-12MP)
Model LS-KF7528M-12MP
75mm, F2.8, 1", 12MP Lens, C-Mount. Provides high resolution and consistency of image clarity. Provides low distortion and high peripheral brightness ratio.
Features
- Provides high resolution and consistency of image clarity.
- Provides low distortion and high peripheral brightness ratio.
- Provides maximum image size Φ16mm.
- Maintains excellent optical characteristics at different object distances
Specifications
| Model | LS-KF7528M-12MP |
|---|---|
| Focal length | 75 mm |
| F-number | F2.8 to F22 |
| Image size | Ø16 mm (1") |
| Optical distortion | 0.75% |
| Minimum object distance | 0.5 m |
| Field of View | D (15.86 mm): 12.2°; H (12.45 mm): 9.8°; V (9.83 mm): 7.3° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M39 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø42 mm × 60.3 mm (Ø1.7'' × 2.4'') |
| Weight | 187 g (0.4 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.36 kg |
