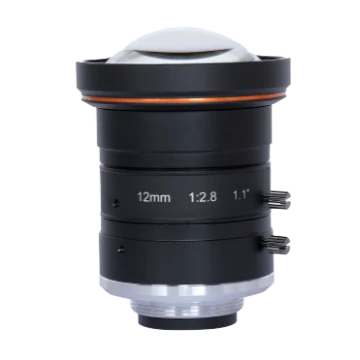

12mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF1228M-12MP)
Model LS-KF1228M-12MP
12mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution, high definition of the whole image Low distortion, high illumination relative
Features
- High resolution, high definition of the whole image
- Low distortion, high illumination relative
- Maximum image circle of 1.1"
- Support ultra-short working distance, maintaining excellent optical properties at different object distances
Specifications
| Model | LS-KF1228M-12MP |
|---|---|
| Field of view | D (17.52mm): 70.5°; H (14.14mm): 59.8°; V (10.35mm): 46.2° |
| Focal length | 12 mm |
| F-number | F2.8 to F16 |
| Image size | Ø17.6 mm |
| Optical distortion | –1.79% |
| Minimum object distance | 0.1 m |
| Dimension | Ø47 mm × 56.99 mm (Ø1.9" × 2.2") |
| Weight | 186 g (0.4 lb.) |
| Temperature | –10°C to 50°C (14°F to 122°F) |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.36 kg |
