Machine vision lenses

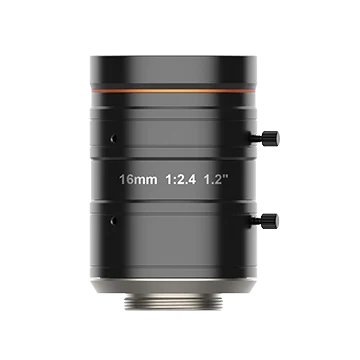

Fixed focal length, Fixed iris, 25 MP, FA lens (LS-XAC-16250F)
Model LS-XAC-16250F
Fixed focal length, Fixed iris, 25 MP, FA lens. Ultra-high resolution with highly uniform image sharpness 1.2" large format, large aperture, low distortion, high relative illumination
Features
- Ultra-high resolution with highly uniform image sharpness
- 1.2" large format, large aperture, low distortion, high relative illumination
- Achromatic design for better imaging with color cameras
- Excellent optical performance at different object distances
- Excellent vibration and shock resistance and stability at high and low temperatures
- Multi-layer broadband coating for both visible and near-infrared applications
Specifications
| Model | LS-XAC-16250F |
|---|---|
| Focal length | 16 mm |
| F-number | F4.0 |
| Image size | Φ19.3 mm(1.2") |
| Distortion | 0.04% |
| Minimum object distance | 0.08 m |
| Field of view | D (19.3 mm): 61.7°; H (14.6 mm): 48.77°; V (12.63 mm): 42.83° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M40.5×0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ42.1 × 57.22~64.19 mm |
| Weight | 185 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.36 kg |
