Machine vision lenses

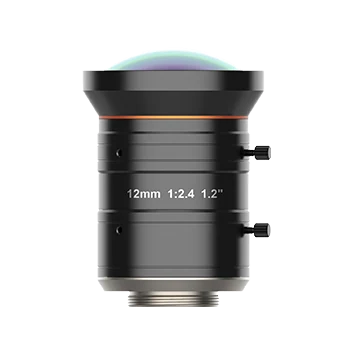

Fixed focal length, Manual iris, 25 MP, FA lens (LS-XAC-1225F)
Model LS-XAC-1225F
Fixed focal length, Manual iris, 25 MP, FA lens. Ultra-high resolution with highly uniform image sharpness 1.2" large format, large aperture, low distortion, high relative illumination
Features
- Ultra-high resolution with highly uniform image sharpness
- 1.2" large format, large aperture, low distortion, high relative illumination
- Achromatic design for better imaging with color cameras
- Excellent optical performance at all object distances
- Excellent vibration and shock resistance and stability at high and low temperatures
- Multi-layer broadband coating for both visible and near-infrared applications
Specifications
| Model | LS-XAC-1225F |
|---|---|
| Focal length | 12 mm |
| F-number | F2.4 ~ F16 |
| Image size | Φ19.3 mm(1.2") |
| Distortion | 0.39% |
| Minimum object distance | 0.1 m |
| Field of view | D(19.30mm):76.37°; H(14.60mm):62.32°; V(12.63mm):55.34° |
| Iris control | Manual |
| Focus control | Manual |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ50×66.96 mm |
| Weight | 215 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.40 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the KF-P series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF1624M-25MP | $239.00 | 2 in stock | View | |
| LS-KF2524M-25MP | $239.00 | 4 in stock | View | |
| LS-KF3524M-25MP | $239.00 | 4 in stock | View | |
| LS-KF5024M-25MP | $239.00 | 5 in stock | View | |
| LS-XAC-16250F | $239.00 | 2 in stock | View | |
| LS-KF0818M-20MP | $239.00 | 5 in stock | View | |
| LS-KF1224M-25MP | $279.00 | 3 in stock | View |
