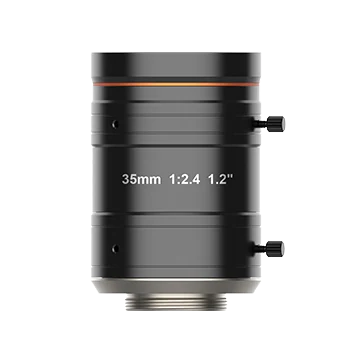

35mm, F2.4, 1.2", 25MP Lens, C-Mount (LS-KF3524M-25MP)
Model LS-KF3524M-25MP
35mm, F2.4, 1.2", 25MP Lens, C-Mount. Ultra high resolution and consistency of image clarity 1.2" image circle, bigger aperture, lower distortion, higher illumination relative
Features
- Ultra high resolution and consistency of image clarity
- 1.2" image circle, bigger aperture, lower distortion, higher illumination relative
- Achromatic optical system design, better imaging performance with color camerab
- Maintain excellent optical properties at different object distances
- Excellent vibration resistance and stability at high and low temperature performance, optical axis shifting within pixel level
- Multilayer and broadband coating design, compatible with visible and near infrared applications
Specifications
| Model | LS-KF3524M-25MP |
|---|---|
| Field of view | D (19.30 mm): 29.48°; H (14.60 mm): 22.51°; V (12.63 mm): 19.54° |
| Focal length | 35 mm |
| F-number | F2.4 to F16 |
| Image size | Ø19.3 mm (1.2'') |
| Distortion | 0.02% |
| Minimum object distance | 0.15 m |
| Dimension | Ø42 mm × 59.3 mm (Ø1.65'' × 2.33'') |
| Weight | 163 g (0.359 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M40.5 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.33 kg |
