Machine vision lenses

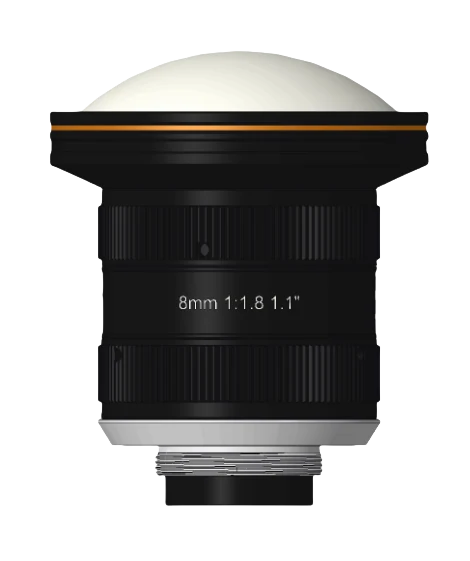

8mm, F1.8, 1.1”, 20 MP, C-mount lens (LS-KF0818M-20MP)
Model LS-KF0818M-20MP
8mm, F1.8, 1.1”, 20 MP, C-mount lens. High resolving power with sharp images 1.1" format, large F1.8 aperture design
Features
- High resolving power with sharp images
- 1.1" format, large F1.8 aperture design
- Excellent optical performance at all object distances
Specifications
| Model | LS-KF0818M-20MP |
|---|---|
| Focal length | 8 mm |
| F-number | F1.8 ~ F16 |
| Image size | Φ17.6 mm(1.1'') |
| Distortion | -2.26% |
| Minimum object distance | 0.1 m |
| Field of view | D(17.52mm):95.23°; H(14.14mm):82.88°; V(10.35mm):65.22° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | External filter adapter attachable (M85 x P0.75) |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ57 × 58.2 ~ 59.2 mm |
| Weight | 220 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.41 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the KF-P series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF1624M-25MP | $239.00 | 2 in stock | View | |
| LS-KF2524M-25MP | $239.00 | 4 in stock | View | |
| LS-KF3524M-25MP | $239.00 | 4 in stock | View | |
| LS-KF5024M-25MP | $239.00 | 5 in stock | View | |
| LS-XAC-16250F | $239.00 | 2 in stock | View | |
| LS-XAC-1225F | $239.00 | 2 in stock | View | |
| LS-KF1224M-25MP | $279.00 | 3 in stock | View |
