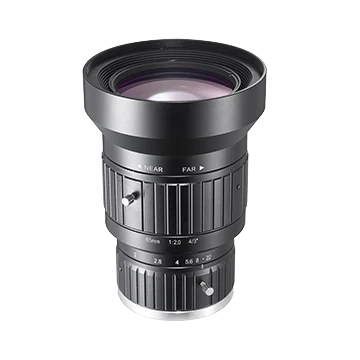

85mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA8520M-10MP)
Model LS-SA8520M-10MP
85mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity F2.0, Maximum image circle of 4/3''
Features
- High resolution and excellent image uniformity
- F2.0, Maximum image circle of 4/3''
- Low distortion to improve measurement accuracy
- High peripheral brightness ratio to ensure image brightness consistency
Specifications
| Model | LS-SA8520M-10MP |
|---|---|
| Focal length | 85 mm |
| F-number | F2.0 to F22 |
| Image size | Ø23 mm (4/3") |
| Optical distortion | –0.04% |
| Minimum object distance | 1.2 m |
| Field of View | D (22.6 mm): 15.4°; H (18.13 mm): 12.1°; V (13.6 mm): 9.3° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M77 × 0.75 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø80 mm × 111.7 mm (Ø3.1" × 4.4") |
| Weight | 666 g (1.5 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 1.03 kg |
