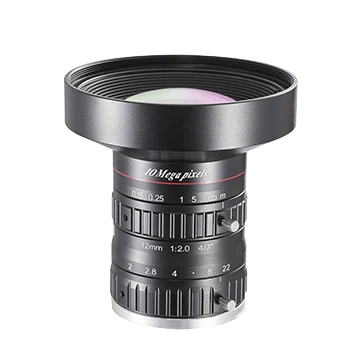

12mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA1220M-10MP)
Model LS-SA1220M-10MP
12mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity. F2.0, maximum format of 4/3''.
Features
- High resolution and excellent image uniformity.
- F2.0, maximum format of 4/3''.
- Low distortion to improve measurement accuracy.
- High peripheral brightness ratio to ensure image brightness consistency.
Specifications
| Model | LS-SA1220M-10MP |
|---|---|
| Focal length | 12 mm |
| F-number | F2.0 to F22 |
| Image size | Ø23 mm (4/3") |
| Optical distortion | –2.40% |
| Minimum object distance | 0.15 m |
| Field of view | D (22.6 mm): 89.0°; H (18.13 mm): 75.5°; V (13.6 mm): 61.1° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M77 × 0.75 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø80 mm × 83.8 mm (Ø3.1" × 3.3") |
| Weight | 445 g (1.0 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.72 kg |
