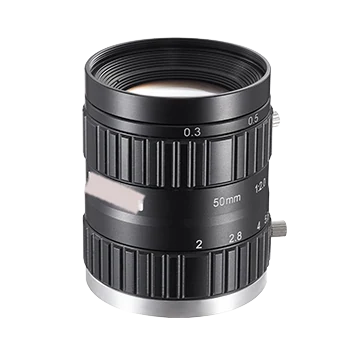

50mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA5020M-10MP)
Model LS-SA5020M-10MP
50mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity F2.0, maximum image circle of 4/3"
Features
- High resolution and excellent image uniformity
- F2.0, maximum image circle of 4/3"
- Low distortion to improve measurement accuracy
- High peripheral brightness ratio to ensure image brightness consistency
Specifications
| Model | LS-SA5020M-10MP |
|---|---|
| Focal length | 50 mm |
| F-number | F2.0 to F22 |
| Image size | Ø23 mm (4/3") |
| Optical distortion | –0.14% |
| Minimum object distance | 0.3 m |
| Field of View | D (22.6 mm): 25.9°; H (18.13 mm): 20.9°; V (13.6 mm): 15.7° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M40.5 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø44.6 mm × 67.8 mm (Ø1.8" × 2.7") |
| Weight | 165 g (0.4 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.33 kg |
