Machine vision lenses

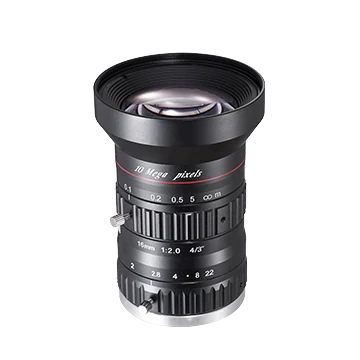

16mm, F2.0, 4/3", 10MP Lens, C-Mount (LS-SA1620M-10MP)
Model LS-SA1620M-10MP
16mm, F2.0, 4/3", 10MP Lens, C-Mount. High resolution and excellent image uniformity F2.0, maximum image circle of 4/3''
Features
- High resolution and excellent image uniformity
- F2.0, maximum image circle of 4/3''
- Low distortion to improve measurement accuracy
- High peripheral brightness ratio to ensure image brightness consistency
Specifications
| Model | LS-SA1620M-10MP |
|---|---|
| Focal length | 16 mm |
| F-number | F2.0 to F22 |
| Image size | Ø23 mm (4/3") |
| Optical distortion | –2.81% |
| Minimum object distance | 0.1 m |
| Field of view | D (22.6 mm): 72.9°; H (18.13 mm): 60.9°; V (13.6 mm): 47.3° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M58 × 0.75 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø60 mm × 85.9 mm (Ø 2.4" × 3.4") |
| Weight | 340 g (0.8 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.58 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the SA series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SA1220M-10MP | $59.00 | 2 in stock | View | |
| LS-SA2520M-10MP | $69.00 | 3 in stock | View | |
| LS-SA3520M-10MP | $89.00 | 4 in stock | View | |
| LS-SA5020M-10MP | $99.00 | 4 in stock | View | |
| LS-SA8520M-10MP | $149.00 | 4 in stock | View |
