Machine vision lenses

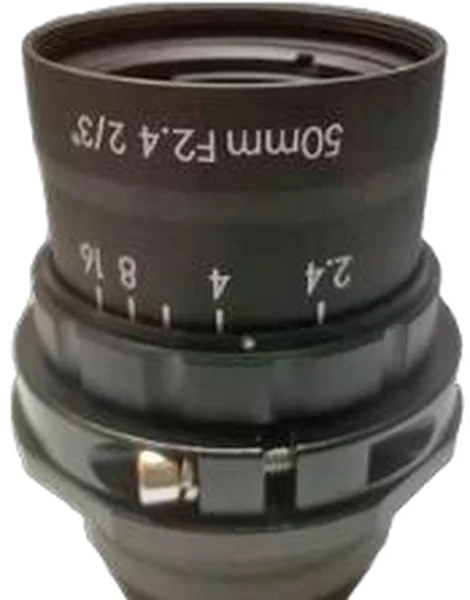

50 mm, 2/3", 8 MP, C-mount Anti-Vibration Machine Vision Lens (LS-S23AV5024-8M)
Model LS-S23AV5024-8M
50 mm, 2/3", 8 MP, C-mount Anti-Vibration Machine Vision Lens. 50 mm 2/3" 8 MP anti-vibration C-mount lens, F2.4 manual iris, magnification 0.034x ~ 0.296x. At a glance: magnification 0.034x ~ 0.296x; focal length 50 mm; format 2/3" (dia. 11 mm); resolution 8.0 Megapixel (2.74 μm); aperture F2.4 Manual iris.
Features
- Anti-vibration
Specifications
| Model | LS-S23AV5024-8M |
|---|---|
| Format | 2/3" (dia. 11 mm) |
| Resolution | 8.0 Megapixel (2.74 μm) |
| Focal length | 50 mm |
| Magnification | 0.034x ~ 0.296x |
| Aperture | F2.4 Manual iris |
| Field of view (2/3") | 26.4 x 26.3 mm (H x V @200mm) |
| Field of view (1/1.8") | 22.9 x 19.1 mm (H x V @200mm) |
| Filter thread | M27 x 0.5-6H |
| W.D. | 200 mm |
| Distortion | 0.00% @290mm WD |
| Size | dia. 35 x 54.7 mm |
| Mount | C |
| Weight | 72 g |
| Character | 20℃~+60℃ focusing |
| Shipping weight (estimated) | 0.20 kg |
Applications
- Automotive assembly lines
- Moving / vibrating vision applications
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Anti-Vibration Machine Vision lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SAVK0428-5MC | 4 mm, 2/3", 5 MP, C-mount | $139.00 | 4 in stock | View |
| LS-SAV0816-5M | 8 mm, 2/3", C-mount | $149.00 | 2 in stock | View |
| LS-SAV1216-5M | 12 mm, 2/3", C-mount | $149.00 | 5 in stock | View |
| LS-S18AV1058-6M | 1/1.8" | Price on request | 3 in stock | View |
| LS-S23AV1624-8M | 16 mm, 2/3", 8 MP, C-mount | $159.00 | 3 in stock | View |
| LS-SAV1616-5M | 16 mm, 2/3", C-mount | $159.00 | 5 in stock | View |
| LS-SAVK1614-5MC | 16 mm, 2/3", 5 MP, C-mount | $159.00 | 5 in stock | View |
| LS-S18AV01252-6M | 25 mm, 1/1.8", 6 MP, C-mount | $169.00 | 3 in stock | View |
| LS-S18AV02130-6M | 25 mm, 1/1.8", 6 MP, C-mount | $169.00 | 5 in stock | View |
| LS-S18AV03135-6M | 25 mm, 1/1.8", 6 MP, C-mount | $169.00 | 3 in stock | View |
| LS-S18AV0388-6M | 25 mm, 1/1.8", 6 MP, C-mount | $169.00 | 2 in stock | View |
| LS-S23AV2524-8M | 25 mm, 2/3", 8 MP, C-mount | $169.00 | 2 in stock | View |
| LS-SAV2516-5M | 25 mm, 2/3", C-mount | $169.00 | 5 in stock | View |
| LS-SAVK2514-5MC | 25 mm, 2/3", 5 MP, C-mount | $169.00 | 4 in stock | View |
| LS-S18AV01360-6M | 35 mm, 1/1.8", 6 MP, C-mount | $179.00 | 4 in stock | View |
| LS-S18AV02192-6M | 35 mm, 1/1.8", 6 MP, C-mount | $179.00 | 5 in stock | View |
| LS-S23AV3524-8M | 35 mm, 2/3", 8 MP, C-mount | $179.00 | 2 in stock | View |
| LS-SAV3516-5M | 35 mm, 2/3", C-mount | $179.00 | 4 in stock | View |
| LS-SAVK3514-5MC | 35 mm, 2/3", 5 MP, C-mount | $179.00 | 4 in stock | View |
| LS-S18AV0960-6M | 43 mm, 1/1.8", 6 MP, C-mount | $189.00 | 4 in stock | View |
| LS-S18AV0158-6M | 45 mm, 1/1.8", 6 MP, C-mount | $199.00 | 4 in stock | View |
| LS-SAV5020-5M | 50 mm, 2/3", C-mount | $199.00 | 3 in stock | View |
| LS-SAVK5014-5MC | 50 mm, 2/3", 5 MP, C-mount | $199.00 | 2 in stock | View |
| LS-S11AVK0815-5MC | 8 mm, 1.1", 5 MP, C-mount | $219.00 | 4 in stock | View |
