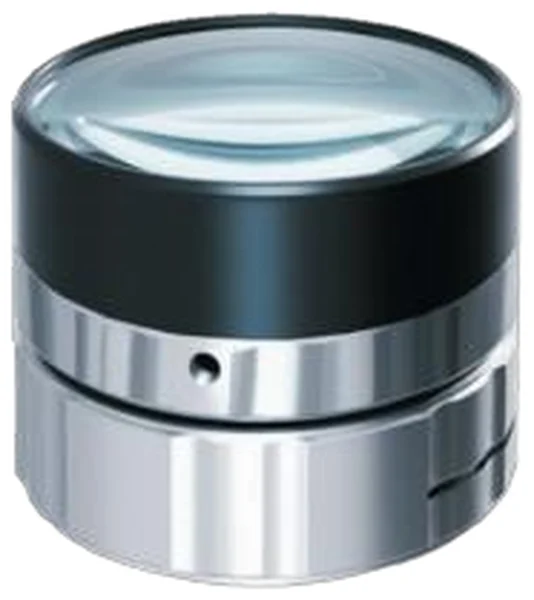

25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-S18AV0388-6M)
Model LS-S18AV0388-6M
25 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.3x fixed-magnification lens for 1/1.8" 6 MP sensors, 25 mm focal length, 88 mm working distance, F6.5 fixed iris, C-mount. At a glance: magnification 0.3x; focal length 25 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F6.5 Fixed iris.
Features
- Anti-vibration
Specifications
| Model | LS-S18AV0388-6M |
|---|---|
| Format | 1/1.8" (Max dia. 9 mm) |
| Resolution | 6.0 Megapixel |
| Focal length | 25 mm |
| Magnification | 0.3x |
| Aperture | F6.5 Fixed iris |
| Field of view (1/1.8" 7.13 x 5.37) | 23.8 x 17.9 mm |
| Field of view (1/1.8" 7.43 x 4.9) | 24.8 x 16.3 mm |
| NA | 0.02305 |
| W.D. | 88 mm |
| Distortion (image side) | 0.2% |
| Object-side resolution | 14.6um |
| Object-side depth of field | 5.8mm |
| Size | dia. 36 x 30 mm |
| MTF30 (image side) | 126lp/mm |
| Mount | C |
| Shipping weight (estimated) | 0.38 kg |
Applications
- Automotive assembly lines
- Moving / vibrating vision applications
