Machine vision lenses

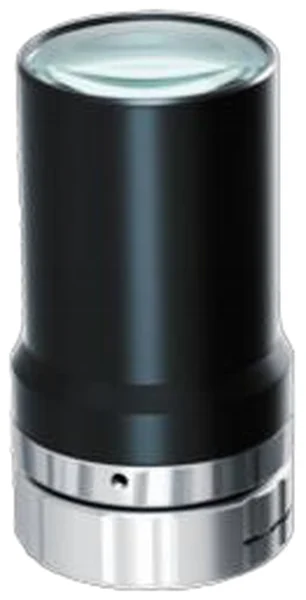

43 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-S18AV0960-6M)
Model LS-S18AV0960-6M
43 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.9x fixed-magnification lens for 1/1.8" 6 MP sensors, 43 mm focal length, 60 mm working distance, F8.5 fixed iris, C-mount. At a glance: magnification 0.9x; focal length 43 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F8.5 Fixed iris.
Features
- Anti-vibration
Specifications
| Model | LS-S18AV0960-6M |
|---|---|
| Format | 1/1.8" (Max dia. 9 mm) |
| Resolution | 6.0 Megapixel |
| Focal length | 43 mm |
| Magnification | 0.9x |
| Aperture | F8.5 Fixed iris |
| Field of view (1/1.8" 7.13 x 5.37) | 7.92 x 5.97 mm |
| Field of view (1/1.8" 7.43 x 4.9) | 8.26 x 5.44 mm |
| NA | 0.05295 |
| W.D. | 60 mm |
| Distortion (image side) | 0.05% |
| Object-side resolution | 6.3um |
| Object-side depth of field | 0.8mm |
| Size | dia. 36 x 69.7 mm |
| MTF30 (image side) | 86lp/mm |
| Mount | C |
| Shipping weight (estimated) | 0.38 kg |
Applications
- Automotive assembly lines
- Moving / vibrating vision applications
