Machine vision lenses

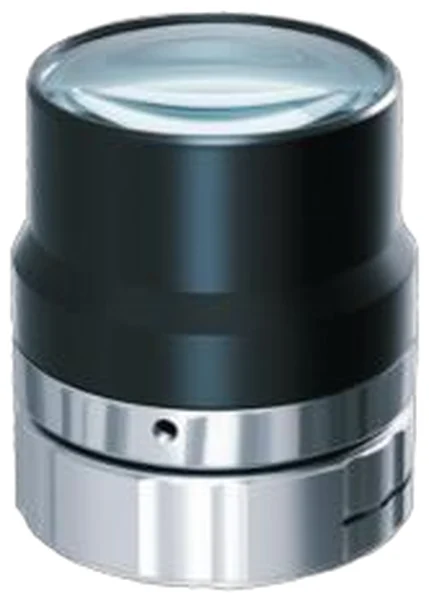

35 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens (LS-S18AV01360-6M)
Model LS-S18AV01360-6M
35 mm, 1/1.8", 6 MP, C-mount Anti-Vibration Machine Vision Lens. Anti-vibration 0.1x fixed-magnification lens for 1/1.8" 6 MP sensors, 35 mm focal length, 360 mm working distance, F5.6 fixed iris, C-mount. At a glance: magnification 0.1x; focal length 35 mm; format 1/1.8" (Max dia. 9 mm); resolution 6.0 Megapixel; aperture F5.6 Fixed iris.
Features
- Anti-vibration
Specifications
| Model | LS-S18AV01360-6M |
|---|---|
| Format | 1/1.8" (Max dia. 9 mm) |
| Resolution | 6.0 Megapixel |
| Focal length | 35 mm |
| Magnification | 0.1x |
| Aperture | F5.6 Fixed iris |
| Field of view (1/1.8" 7.13 x 5.37) | 71.3 x 53.7 mm |
| Field of view (1/1.8" 7.43 x 4.9) | 74.3 x 49.0 mm |
| NA | 0.00893 |
| W.D. | 360 mm |
| Distortion (image side) | 0.13% |
| Object-side resolution | 37.6um |
| Object-side depth of field | 44.8mm |
| Size | dia. 40 x 38.3 mm |
| MTF30 (image side) | 180lp/mm |
| Mount | C |
| Shipping weight (estimated) | 0.38 kg |
Applications
- Automotive assembly lines
- Moving / vibrating vision applications
