Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

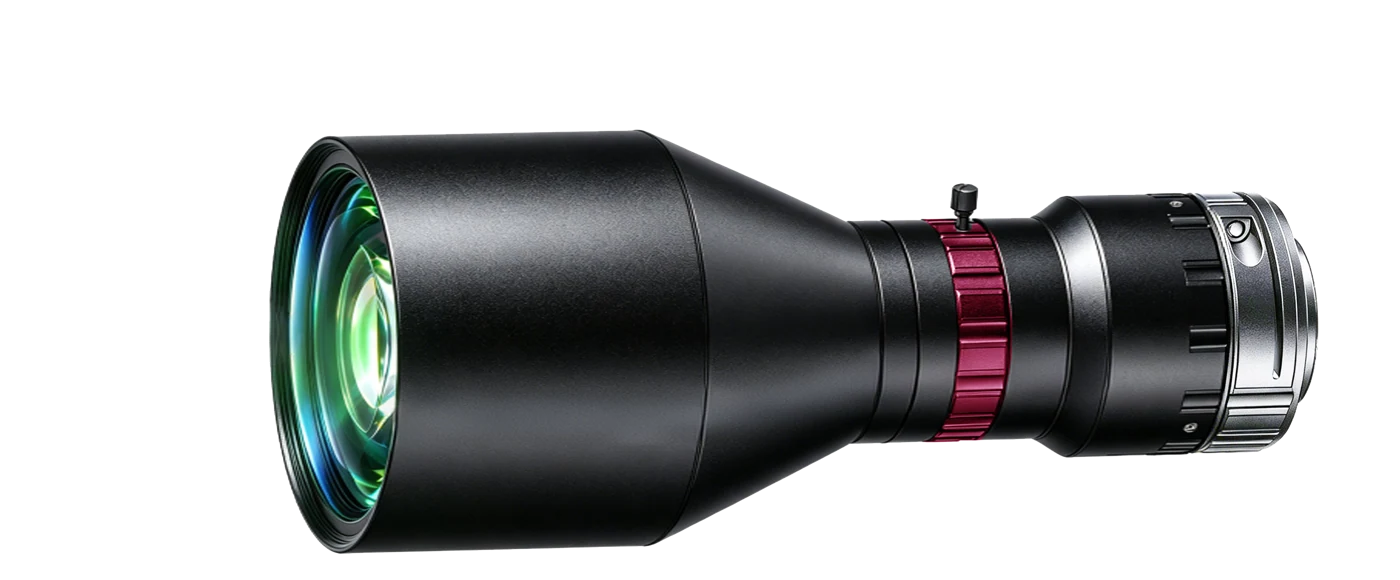

Object-Side Telecentric Lens, 0.4x, 150 mm WD, 1" (LS-KT10-04-150-G-V2)

Telecentric lenses

Object-Side Telecentric Lens, 0.4x, 150 mm WD, 1" (LS-KT10-04-150-G-V2)

Model LS-KT10-04-150-G-V2

Object-Side Telecentric Lens, 0.4x, 150 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"

$1,649.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KT10-04-150-G-V23D model (STEP, ZIP) - LS-KT10-04-150-G-V2

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1"

Specifications

ModelLS-KT10-04-150-G-V2
Magnification0.4
Working distance150 mm
Image size1"
F-numberF9-32
Depth of field4.5~16 mm
Distortion≤ 0.02%
Object-side resolution15.11-53.69 μm
Object-side telecentricity≤ 0.2°
Connector typeC-Mount
Coaxial lightNot supported
Dimension151.9 mm × Φ64 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KS-035-7330.35x, 733 mm WD, 1.1" $1,339.00 2 in stockView
LS-KS-035-6470.35x, 647 mm WD, 1.1" $1,339.00 3 in stockView
LS-KY-036-1250.36x, 125 mm WD, 1" $1,379.00 2 in stockView
LS-KT-035-1600.35x, 160 mm WD, 1" $1,379.00 2 in stockView
LS-KT-0345-220-V40.345x, 220 mm WD, 1.1" $1,449.00 4 in stockView
LS-KT-0345-220-V5-G0.345x, 220 mm WD, 1.1" $1,449.00 2 in stockView
LS-KS-035-2320.35x, 232 mm WD, 1.2" $1,449.00 4 in stockView
LS-KT-023-2200.23x, 220 mm WD, 1.1" $1,609.00 3 in stockView
LS-KT-023-1700.23x, 170 mm WD, 1.1" $1,609.00 5 in stockView
LS-KT-0275-2200.275x, 220 mm WD, 1.1" $1,649.00 2 in stockView
LS-KT-069-1920.69x, 192 mm WD, 1" $1,649.00 4 in stockView
LS-KT-04-150-G0.4x, 150 mm WD, 1" $1,649.00 5 in stockView
LS-KS-045-1890.45x, 189 mm WD, 1.2" $1,649.00 4 in stockView
LS-KT-04-1960.4x, 196 mm WD, 1" $1,789.00 4 in stockView
LS-KT-04-2000.4x, 200 mm WD, 1.1" $1,789.00 2 in stockView
LS-KS-04-1900.4x, 190 mm WD, 1.2" $1,789.00 2 in stockView
LS-KT-0246-2200.246x, 220 mm WD, 1.1" $1,809.00 2 in stockView
LS-KY-07-3000.7x, 300 mm WD, 1.1" $1,929.00 4 in stockView
LS-KT-03-2500.3x, 250 mm WD, 1" $1,929.00 4 in stockView
LS-KS-07-2870.7x, 287 mm WD, 1.1" $1,929.00 2 in stockView
LS-KS-04-2270.4x, 227 mm WD, 1.2" $2,269.00 4 in stockView
LS-KY-04-2500.4x, 250 mm WD, 1" $2,439.00 2 in stockView
LS-KS-035-2540.35x, 254 mm WD, 1.2" $2,439.00 2 in stockView
LS-KT-036-2910.36x, 291 mm WD, 1" $2,609.00 2 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
