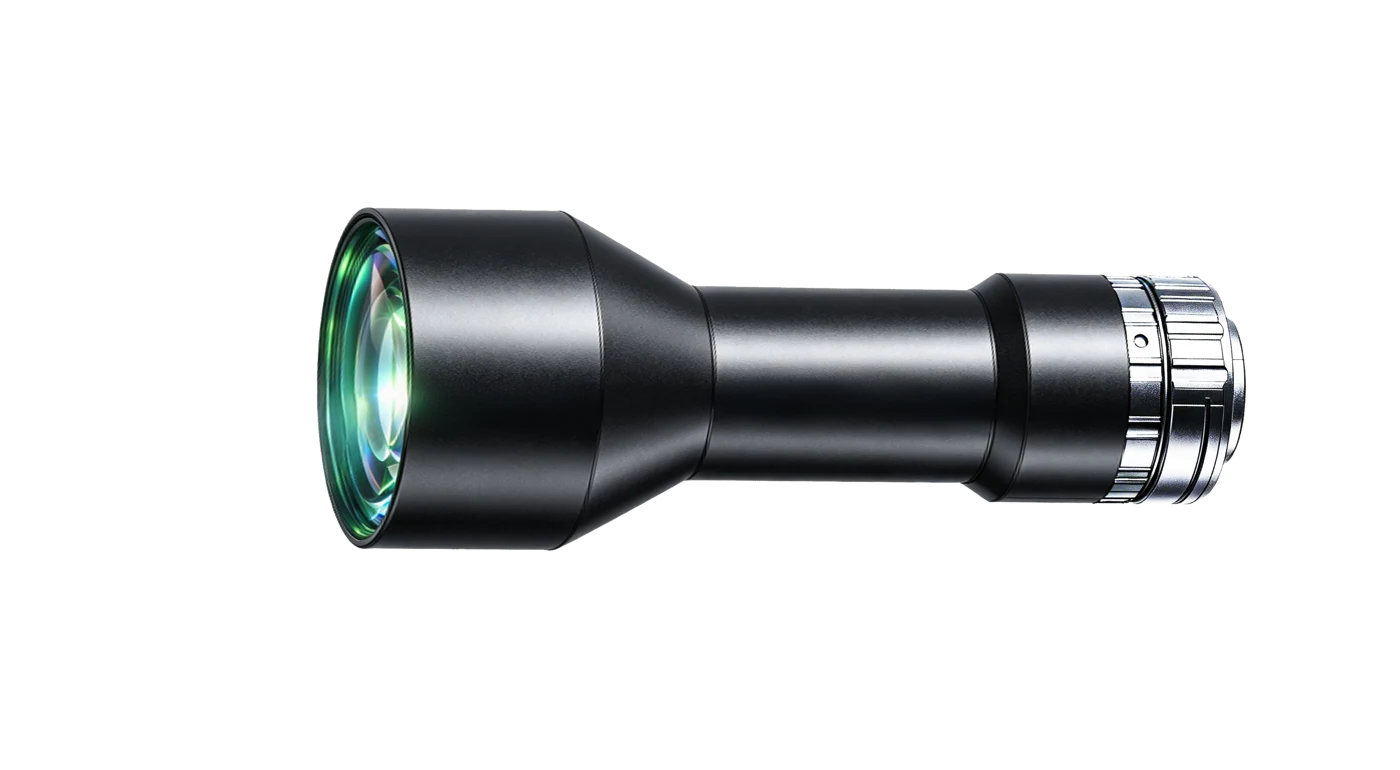

Object-Side Telecentric Lens, 0.36x, 291 mm WD, 1", coaxial light port (LS-KT-036-291)
Model LS-KT-036-291
Object-Side Telecentric Lens, 0.36x, 291 mm WD, 1", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1"
Specifications
| Model | LS-KT-036-291 |
|---|---|
| Magnification | 0.36 |
| Working distance | 291 mm |
| Image size | 1" |
| F-number | F7.5 |
| Depth of field | ±2.3 mm @F7.5 |
| Distortion | ≤ 0.06% |
| Object-side resolution | 14 μm |
| Object-side telecentricity | ≤ 0.5° |
| Connector type | C-Mount |
| Coaxial light | Supported |
| Dimension | 194 mm × Φ60 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
