Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

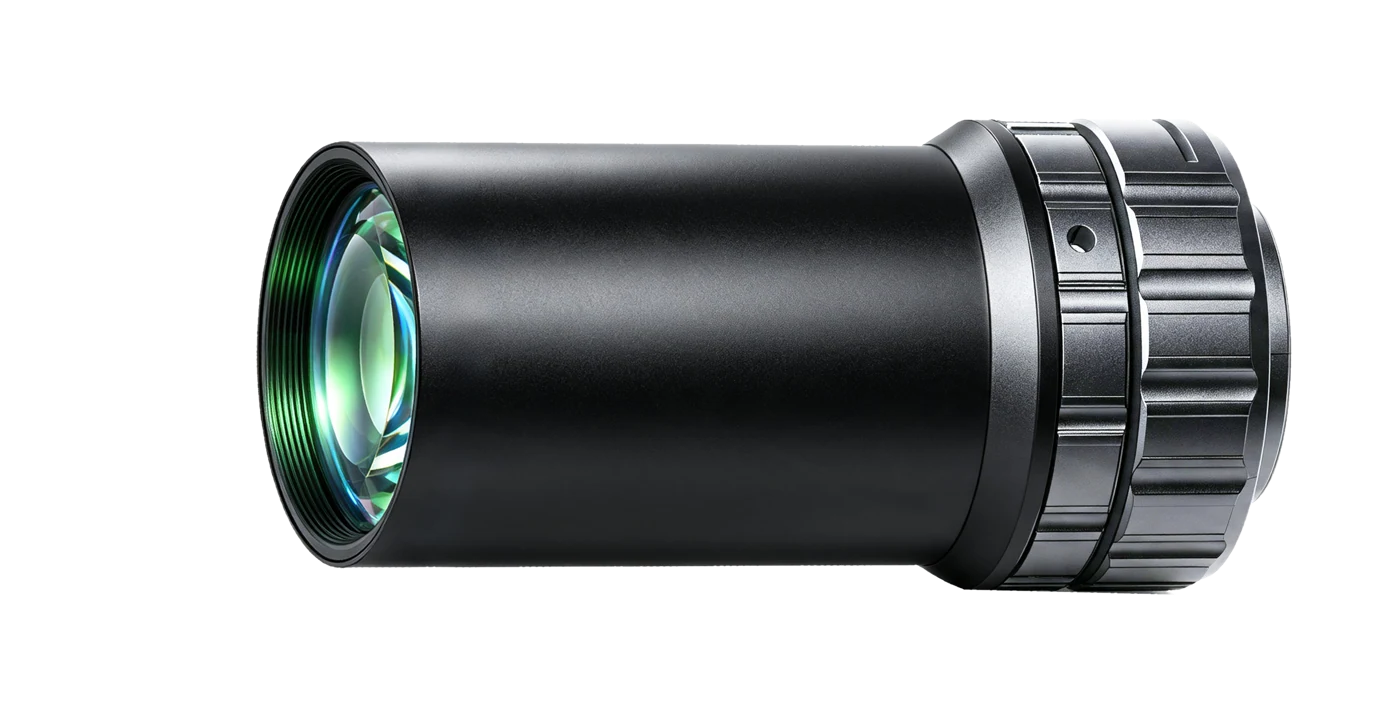

Object-Side Telecentric Lens, 0.25x, 310 mm WD, 1.2" (LS-KS-025-310)

Telecentric lenses

Object-Side Telecentric Lens, 0.25x, 310 mm WD, 1.2" (LS-KS-025-310)

Model LS-KS-025-310

Object-Side Telecentric Lens, 0.25x, 310 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"

$3,469.00 USDIn stock · 3 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KS-025-3103D model (STEP, ZIP) - LS-KS-025-310

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1.2"

Specifications

ModelLS-KS-025-310
Magnification0.25
Working distance310 mm
Image size1.2"
F-numberF4.9
Depth of field6.3 mm
Distortion≤ 0.12%
Object-side resolution13.2 μm
Object-side telecentricityNon-telecentric
Connector typeC-Mount
Coaxial lightNot supported
Dimension78 mm × Φ40 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KT-04-2000.4x, 200 mm WD, 1.1" $1,789.00 2 in stockView
LS-KS-04-1900.4x, 190 mm WD, 1.2" $1,789.00 2 in stockView
LS-KT-0246-2200.246x, 220 mm WD, 1.1" $1,809.00 2 in stockView
LS-KY-07-3000.7x, 300 mm WD, 1.1" $1,929.00 4 in stockView
LS-KT-03-2500.3x, 250 mm WD, 1" $1,929.00 4 in stockView
LS-KS-07-2870.7x, 287 mm WD, 1.1" $1,929.00 2 in stockView
LS-KS-04-2270.4x, 227 mm WD, 1.2" $2,269.00 4 in stockView
LS-KY-04-2500.4x, 250 mm WD, 1" $2,439.00 2 in stockView
LS-KS-035-2540.35x, 254 mm WD, 1.2" $2,439.00 2 in stockView
LS-KT-036-2910.36x, 291 mm WD, 1" $2,609.00 2 in stockView
LS-KT10-042-2850.42x, 285 mm WD, 1" $2,889.00 3 in stockView
LS-KY-04-3000.4x, 300 mm WD, 4/3" $3,469.00 5 in stockView
LS-KS-04-4250.4x, 425 mm WD, 1.1" $3,469.00 5 in stockView
LS-KY-03-3400.3x, 340 mm WD, 1" $3,819.00 3 in stockView
LS-KY-022-3800.22x, 380 mm WD, 1" $4,259.00 2 in stockView
LS-KY-03-3600.3x, 360 mm WD, 1" $4,259.00 5 in stockView
LS-KS-015-6400.15x, 640 mm WD, 1.1" $4,259.00 2 in stockView
LS-KS-015-9630.15x, 963 mm WD, 1.1" $4,259.00 3 in stockView
LS-KY-0175-6400.175x, 640 mm WD, 1" $4,669.00 3 in stockView
LS-KY-018-6300.18x, 630 mm WD, 1" $4,669.00 4 in stockView
LS-KY-025-4150.25x, 415 mm WD, 4/3" $4,669.00 4 in stockView
LS-KY-028-6800.28x, 680 mm WD, 1" $4,669.00 3 in stockView
LS-KY-029-7420.29x, 742 mm WD, 1" $4,669.00 4 in stockView
LS-KS-025-4230.25x, 423 mm WD, 1.2" $4,669.00 2 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
