Home / Lenses / Telecentric lenses / K Series Object-Side Telecentric lenses

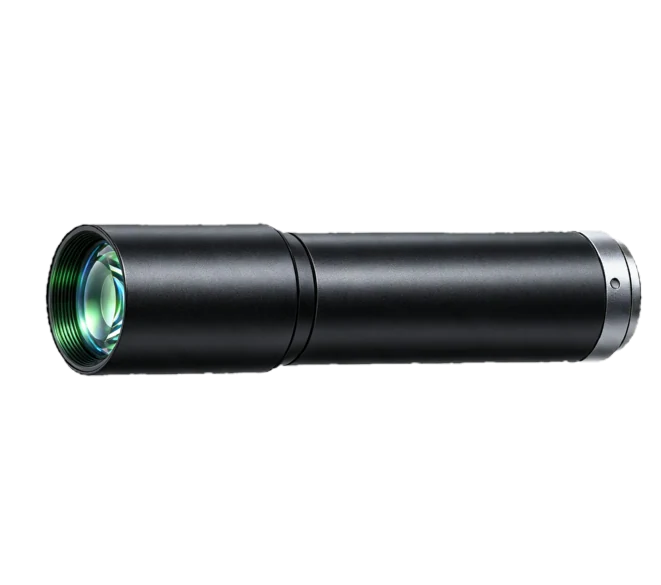

Object-Side Telecentric Lens, 0.7x, 287 mm WD, 1.1" (LS-KS-07-287)

Telecentric lenses

Object-Side Telecentric Lens, 0.7x, 287 mm WD, 1.1" (LS-KS-07-287)

Model LS-KS-07-287

Object-Side Telecentric Lens, 0.7x, 287 mm WD, 1.1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.1"

$1,929.00 USDIn stock · 2 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-KS-07-2873D model (STEP, ZIP) - LS-KS-07-287

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 1.1"

Specifications

ModelLS-KS-07-287
Magnification0.7
Working distance287 mm
Image size1.1"
F-numberF8
Depth of field1.3 mm
Distortion≤ 0.1951%
Object-side resolution7.7 μm
Object-side telecentricityNon-telecentric
Connector typeC-Mount
Coaxial lightNot supported
Dimension134.3 mm × Φ34 mm
Temperature-10~50°C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the K Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-KT-023-1700.23x, 170 mm WD, 1.1" $1,609.00 5 in stockView
LS-KT-0275-2200.275x, 220 mm WD, 1.1" $1,649.00 2 in stockView
LS-KT-069-1920.69x, 192 mm WD, 1" $1,649.00 4 in stockView
LS-KT-04-150-G0.4x, 150 mm WD, 1" $1,649.00 5 in stockView
LS-KT10-04-150-G-V20.4x, 150 mm WD, 1" $1,649.00 5 in stockView
LS-KS-045-1890.45x, 189 mm WD, 1.2" $1,649.00 4 in stockView
LS-KT-04-1960.4x, 196 mm WD, 1" $1,789.00 4 in stockView
LS-KT-04-2000.4x, 200 mm WD, 1.1" $1,789.00 2 in stockView
LS-KS-04-1900.4x, 190 mm WD, 1.2" $1,789.00 2 in stockView
LS-KT-0246-2200.246x, 220 mm WD, 1.1" $1,809.00 2 in stockView
LS-KY-07-3000.7x, 300 mm WD, 1.1" $1,929.00 4 in stockView
LS-KT-03-2500.3x, 250 mm WD, 1" $1,929.00 4 in stockView
LS-KS-04-2270.4x, 227 mm WD, 1.2" $2,269.00 4 in stockView
LS-KY-04-2500.4x, 250 mm WD, 1" $2,439.00 2 in stockView
LS-KS-035-2540.35x, 254 mm WD, 1.2" $2,439.00 2 in stockView
LS-KT-036-2910.36x, 291 mm WD, 1" $2,609.00 2 in stockView
LS-KT10-042-2850.42x, 285 mm WD, 1" $2,889.00 3 in stockView
LS-KY-04-3000.4x, 300 mm WD, 4/3" $3,469.00 5 in stockView
LS-KS-025-3100.25x, 310 mm WD, 1.2" $3,469.00 3 in stockView
LS-KS-04-4250.4x, 425 mm WD, 1.1" $3,469.00 5 in stockView
LS-KY-03-3400.3x, 340 mm WD, 1" $3,819.00 3 in stockView
LS-KY-022-3800.22x, 380 mm WD, 1" $4,259.00 2 in stockView
LS-KY-03-3600.3x, 360 mm WD, 1" $4,259.00 5 in stockView
LS-KS-015-6400.15x, 640 mm WD, 1.1" $4,259.00 2 in stockView

See all 123 models in the K Series Object-Side Telecentric lenses series
