Telecentric lenses

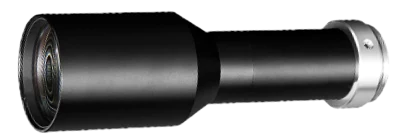

Object-Side Telecentric Lens, 0.36x, 125 mm WD, 1" (LS-KY-036-125)
Model LS-KY-036-125
Object-Side Telecentric Lens, 0.36x, 125 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1"
Specifications
| Model | LS-KY-036-125 |
|---|---|
| Magnification | 0.36 |
| Working distance | 125 mm |
| Image size | 1" |
| F-number | F14.9 |
| Depth of field | 9.2 mm |
| Distortion | ≤ 0.4% |
| Object-side resolution | 27.4 μm |
| Object-side telecentricity | Non-telecentric |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 195.1 mm × Φ43 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the K Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KT-055-190 | 0.55x, 190 mm WD, 1.1" | $1,119.00 | 2 in stock | View |
| LS-KT-046-220 | 0.46x, 220 mm WD, 1" | $1,149.00 | 4 in stock | View |
| LS-KT-06-110-V3 | 0.6x, 110 mm WD, 1.1" | $1,169.00 | 2 in stock | View |
| LS-KT-093-120-V3 | 0.93x, 120 mm WD, 1.1" | $1,279.00 | 2 in stock | View |
| LS-KT-0367-220C | 0.367x, 220 mm WD, 1.1" | $1,299.00 | 4 in stock | View |
| LS-KT-1-80C-G | 1x, 80 mm WD, 1.2" | $1,309.00 | 3 in stock | View |
| LS-KY-03-650 | 0.3x, 650 mm WD, 1.1" | $1,339.00 | 2 in stock | View |
| LS-KY-035-560 | 0.35x, 560 mm WD, 1.1" | $1,339.00 | 2 in stock | View |
| LS-KS-035-473 | 0.35x, 473 mm WD, 1.1" | $1,339.00 | 5 in stock | View |
| LS-KS-03-534 | 0.3x, 534 mm WD, 1.1" | $1,339.00 | 3 in stock | View |
| LS-KS-035-733 | 0.35x, 733 mm WD, 1.1" | $1,339.00 | 2 in stock | View |
| LS-KS-035-647 | 0.35x, 647 mm WD, 1.1" | $1,339.00 | 3 in stock | View |
| LS-KT-035-160 | 0.35x, 160 mm WD, 1" | $1,379.00 | 2 in stock | View |
| LS-KT-0345-220-V4 | 0.345x, 220 mm WD, 1.1" | $1,449.00 | 4 in stock | View |
| LS-KT-0345-220-V5-G | 0.345x, 220 mm WD, 1.1" | $1,449.00 | 2 in stock | View |
| LS-KS-035-232 | 0.35x, 232 mm WD, 1.2" | $1,449.00 | 4 in stock | View |
| LS-KT-023-220 | 0.23x, 220 mm WD, 1.1" | $1,609.00 | 3 in stock | View |
| LS-KT-023-170 | 0.23x, 170 mm WD, 1.1" | $1,609.00 | 5 in stock | View |
| LS-KT-0275-220 | 0.275x, 220 mm WD, 1.1" | $1,649.00 | 2 in stock | View |
| LS-KT-069-192 | 0.69x, 192 mm WD, 1" | $1,649.00 | 4 in stock | View |
| LS-KT-04-150-G | 0.4x, 150 mm WD, 1" | $1,649.00 | 5 in stock | View |
| LS-KT10-04-150-G-V2 | 0.4x, 150 mm WD, 1" | $1,649.00 | 5 in stock | View |
| LS-KS-045-189 | 0.45x, 189 mm WD, 1.2" | $1,649.00 | 4 in stock | View |
| LS-KT-04-196 | 0.4x, 196 mm WD, 1" | $1,789.00 | 4 in stock | View |
See all 123 models in the K Series Object-Side Telecentric lenses series
