16 mm lens, 1.1", C-mount, 12 MP (LS-FFL-0051)

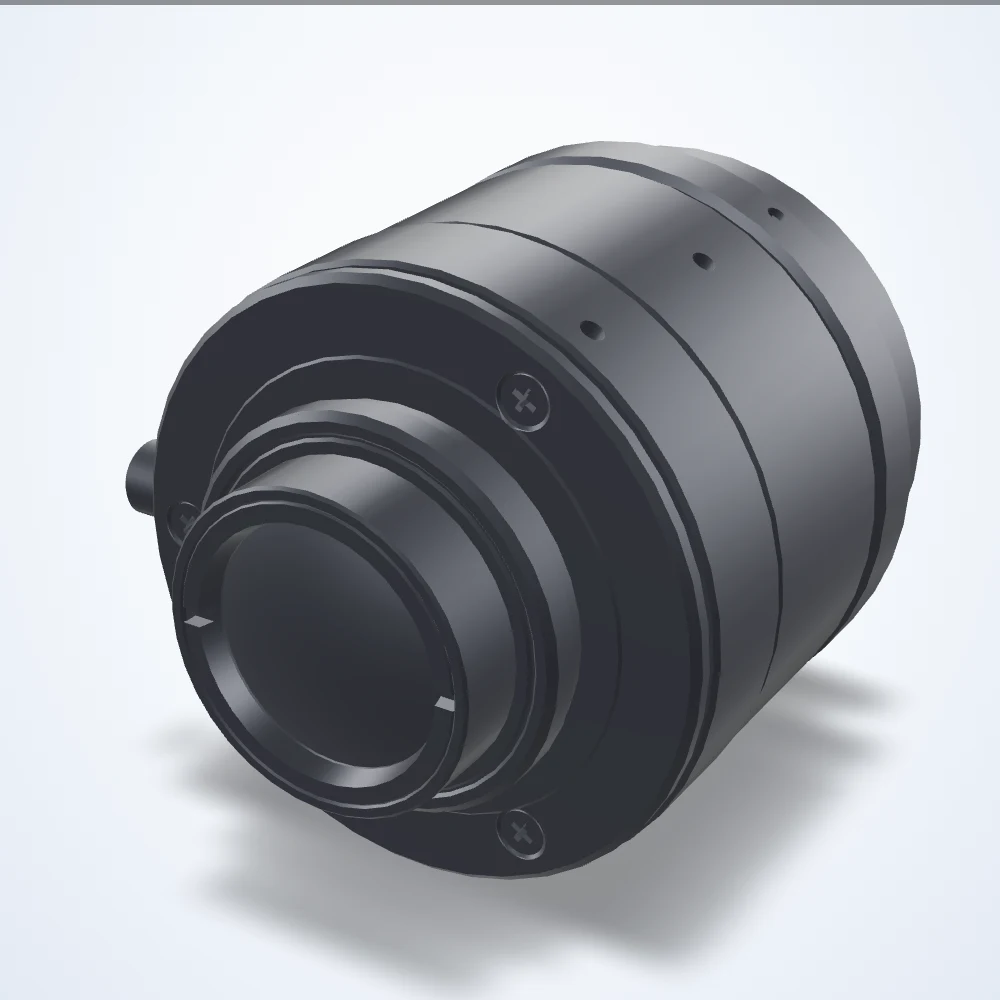

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

16 mm lens, 1.1", C-mount, 12 MP (LS-FFL-0051)

Model LS-FFL-0051

Machine vision lens for industrial cameras. Minimum object distance 300 mm.

Datasheet (PDF) - LS-FFL-0051 3D model (STEP) - LS-FFL-0051

Specifications

Model	LS-FFL-0051
Focal length	16 mm
Sensor format	1.1"
Mount	C-mount
Minimum object distance	300 mm
Aov @ 1.1″ h°×v°×d°	48.2 × 36.2 × 57.9°
Aov @ 1″ h°×v°×d°	43.9 × 33.6 × 53.4°
Aov @ 2/3″ h°×v°×d°	30.9 × 23.4 × 38.2°
Aperture (max)	f/2.8
Back focal length	9.4 mm
Dimensions	39.5 × 39.5 × 35.2 mm
Filter thread	M34.0-0.5
Focus control	Manual
Focus range	0.3 m - ∞
Front diameter	19.4 mm
Image circle	17.6 mm
Image size dimensions	14.2 mm x 10.4 mm
Iris control	Manual
Lens type	Fixed Focal Length
Operating temperature range	10 to +50 °C
Rear effective diameter	15.3 mm
Resolution (MP)	12
Spectrum	Visible
Zoom range	Fixed
Weight	89.8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the Lens series, 1.1", C-mount (S07) series

Model	Size	Price	Availability	Link
LS-FFL-0052	25 mm	Price on request	3 in stock	View
LS-FFL-0054	25 mm	Price on request	2 in stock	View
LS-FFL-0055	35 mm	Price on request	3 in stock	View
LS-FFL-0057	35 mm	Price on request	3 in stock	View
LS-FFL-0059	50 mm	Price on request	2 in stock	View
