Home / Lenses / Machine vision lenses / 25 mm lens, 1.1", C-Mount

25 mm lens, 1.1", C-Mount (LS-FFL-0052)

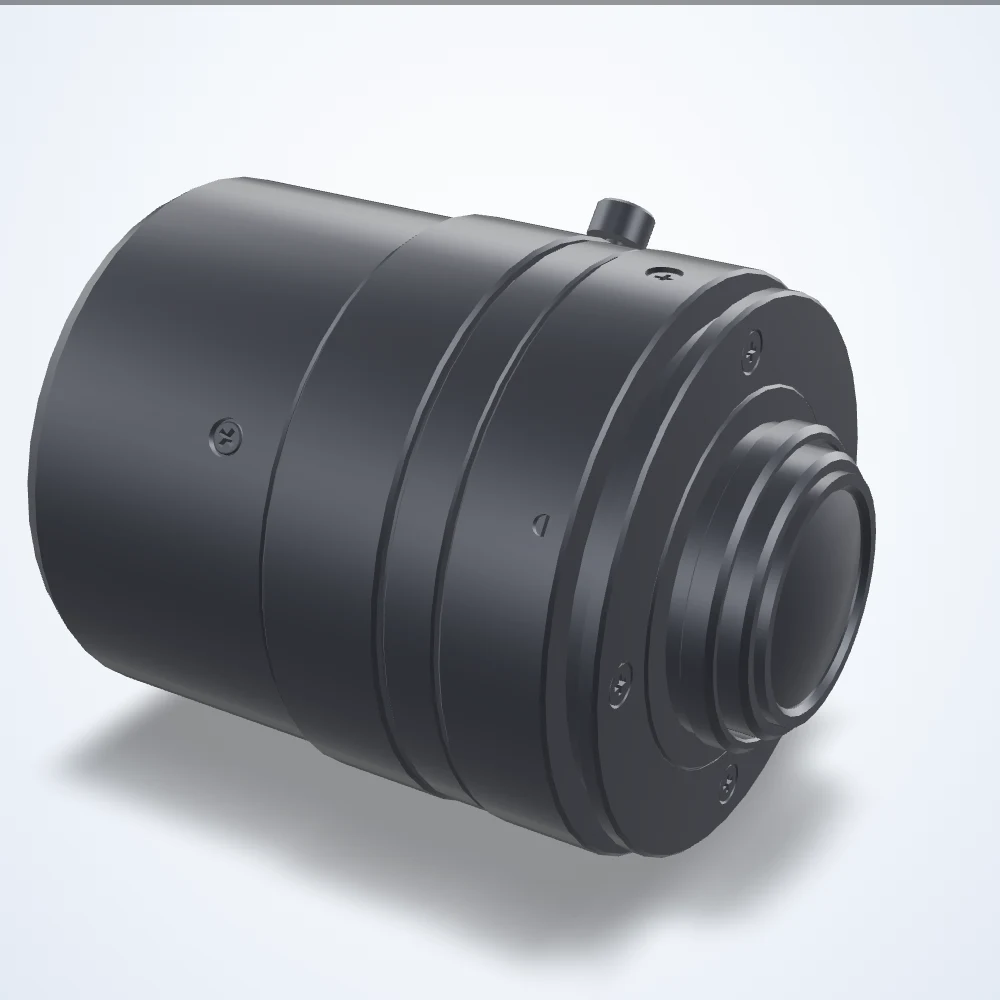

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

25 mm lens, 1.1", C-Mount (LS-FFL-0052)

Model LS-FFL-0052

25 mm lens, 1.1", C-Mount. Minimum object distance 1000 mm. Aperture f/1.8 to f/16.

3D model (STEP) - LS-FFL-0052

Specifications

Model	LS-FFL-0052
Filter Thread	M40.5-0.5
Focal Length	25 mm
Focus Range	1 m - ∞
Front Diameter	23.6 mm
Image Circle Diameter	17.6 mm
Image Size Dimensions	14.2 mm x 10.4 mm
Imager Format	1.1"
Lens Type	Fixed Focal Length
Light Spectrum	Visible
Minimum Object Distance	1000 mm
Mount	C-Mount
Resolution (MP)	12
Resolution (Pixel Size)	3.45 μm
ƒ/N Max	f/1.8
ƒ/N Min	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
