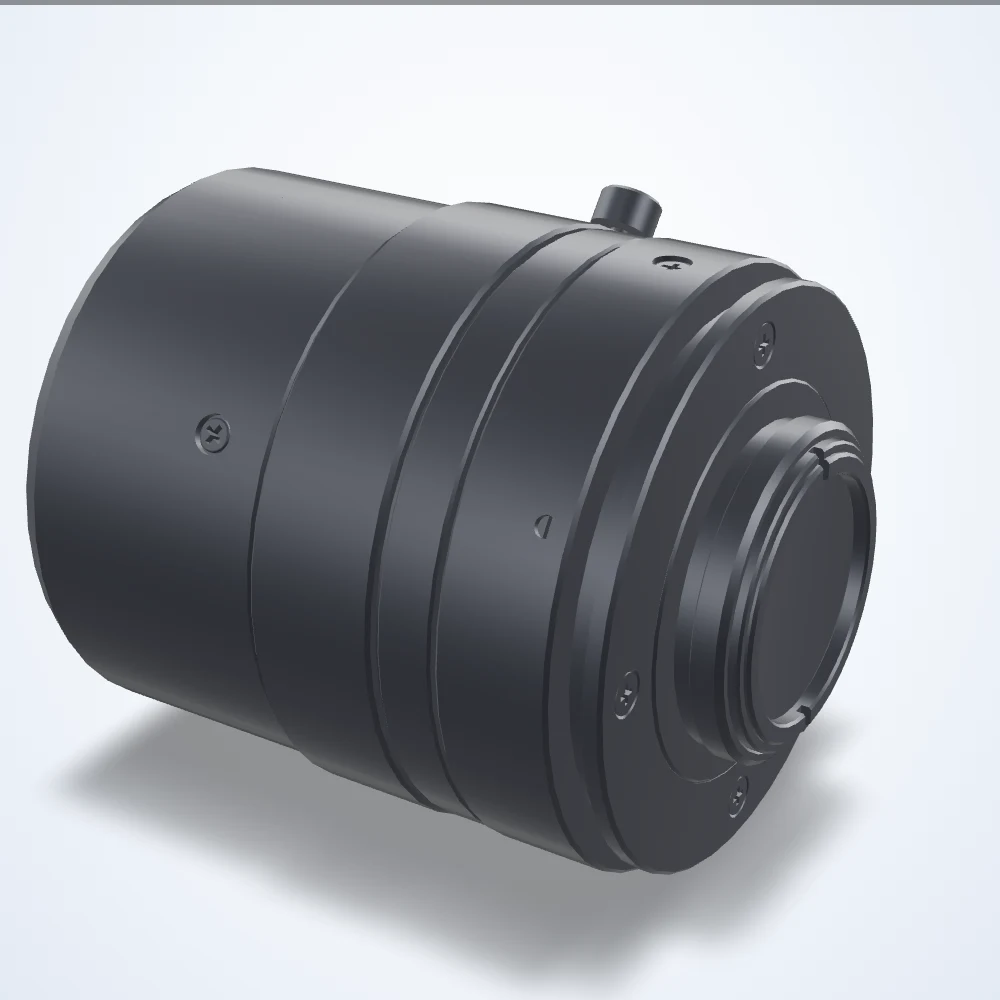

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1.1", C-mount (LS-FFL-0055)
Model LS-FFL-0055
Machine vision lens for industrial cameras. Minimum object distance 2000 mm.
Specifications
| Model | LS-FFL-0055 |
|---|---|
| Focal length | 35 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Minimum object distance | 2000 mm |
| Aov @ 1.1″ h°×v°×d° | 20.2 × 16.5 × 27.4° |
| Aov @ 1″ h°×v°×d° | 25.1 × 15.2 × 25.1° |
| Aov @ 2/3″ h°×v°×d° | 14.0 × 10.5 × 17.4° |
| Aperture (max) | f/1.8 |
| Back focal length | 14.2 mm |
| Dimensions | 46 × 46 × 48.8 mm |
| Filter thread | M40.5-0.5 |
| Focus control | Manual |
| Focus range | 2 m - ∞ |
| Front diameter | 23.9 mm |
| Image circle | 17.6 mm |
| Image size dimensions | 14.2 mm x 10.4 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 17.8 mm |
| Resolution (MP) | 12 |
| Spectrum | Visible + NIR |
| Zoom range | Fixed |
| Weight | 153 |
