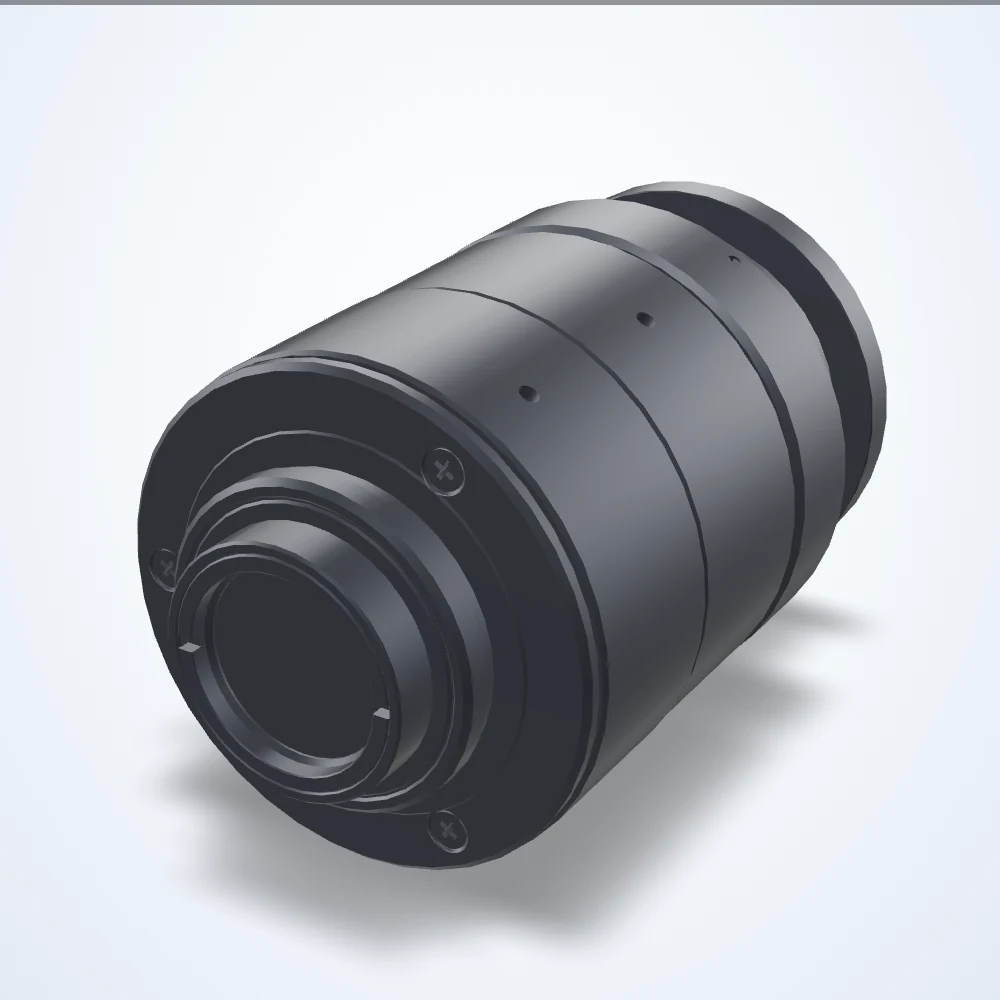

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 1.1", C-mount (LS-FFL-0057)
Model LS-FFL-0057
Machine vision lens for industrial cameras. Minimum object distance 300 mm.
Specifications
| Model | LS-FFL-0057 |
|---|---|
| Focal length | 35 mm |
| Sensor format | 1.1" |
| Mount | C-Mount |
| Minimum object distance | 300 mm |
| Aov @ 1.1″ h°×v°×d° | 22.9 × 16.9 × 28.2° |
| Aov @ 1″ h°×v°×d° | 20.7 × 15.6 × 25.8° |
| Aov @ 2/3″ h°×v°×d° | 14.3 × 10.8 × 17.9° |
| Aperture (max) | f/2.8 |
| Back focal length | 11.7 mm |
| Dimensions | 39.5 × 39.5 × 45.2 mm |
| Filter thread | M34.0-0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Front diameter | 20.9 mm |
| Image circle | 17.6 mm |
| Image size dimensions | 14.2 mm x 10.4 mm |
| Iris control | Manual |
| Lens type | Fixed Focal Length |
| Operating temperature range | -10 to +50 °C |
| Rear effective diameter | 14.3 mm |
| Resolution (MP) | 12 |
| Spectrum | Visible |
| Zoom range | Fixed |
| Weight | 103 |
