Representative photo of this series
Coaxial lights
140 x 140 mm Coaxial light, 525 nm (LS-CXL-0192)
Model LS-CXL-0192-R
- ColourRed, Green, Blue, White
- Emitting area140 x 140 mm
- Cable length500 mm
- Power, red25 W
Ships in 2-3 weeks
1.75 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
LS-CXL-0192: emitting area 140 x 140 mm, power green / blue / white 26 W.
A high-density LED array emits high-intensity, even light; a semi-transparent mirror with a special coating puts the light reflected from the workpiece on the same axis as the camera, eliminating reflections (ghosting) in the image. Very even light distribution, suited to scratch inspection on mirror-finished workpiece surfaces.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0192 |
|---|---|
| Expected life | Red, white, blue and green: 30000 h continuous, decays to 40% (typical one-year decay 5-10%) |
| Support | 1 year of free standard technical support; can be customised to the inspected feature, working distance, illumination angle and field of view |
Interfaces and I/O
| Cable length (mm) | 500 |
|---|
Light
| Emitting area (mm) | 140 x 140 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 525 nm |
| Wavelength blue | 470 nm |
| Colour temperature white | 5000-8000 K |
Environment and compliance
| Operating environment | Ambient about 25 °C, operating temperature within 35 °C |
|---|
Electrical
| Recommended controllers | LS-CTL-0140, -2T / LS-CTL-0142 / LS-CTL-0526, -4T / LS-CTL-0333, -4T, -6T, -8T |
|---|---|
| Power, green / blue / white (W) | 26 |
| Power, red (W) | 25 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-0140, LS-CTL-0142, LS-CTL-0526, LS-CTL-0333 |
Mechanical
| Shipping weight | 1.75 kg |
|---|
Engineering data
Drive and fit the LS-CXL-0192
Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.
Mounting and installation
| Cable | 0.5 m |
|---|
As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.
Controllers for this light
Same 24 V supply
Analog power supply controller, 1 ch, 1 A per channel
LS-CTL-0140
- Channels 1
- Output 0-24 V
$139.00
Ships in 2-3 weeks
Same 24 V supply
Analog power supply controller, 4 ch, 2 A per channel
LS-CTL-0142
- Channels 4
- Output 0-24 V
$229.00
Ships in 2-3 weeks
Same 24 V supply
Digital power supply controller, 2 ch, 16~24 V, 2 A per channel
LS-CTL-0333
- Channels 2
- Output 16~24 V
$329.00
Ships in 2-3 weeks
Same 24 V supply
Common controller, single channel analog, 1 ch, 30 W
LS-CTL-0451
- Channels 1
- Output 16-24 V
$159.00
Ships in 2-3 weeks
30 W per channel at 24 V for this 26 W light
36 W per channel at 24 V for this 26 W light
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0117, the same type of part
Glass, displays and optics
Surface marks on optical lenses
Choose the light path for the defect class instead of treating every visible spot alike.MethodBlue coaxial reflected lightExplore the study
Set up with the LS-CXL-0032, the same type of part
Electronics and devices
Phone-shell scratches under precision coaxial light
Control the reflected field before setting a scratch threshold.Proposed light housing (spec)41 × 30 × 24 mmExplore the study
Set up with the LS-CXL-0201, the same type of part
Plastics, rubber and ceramics

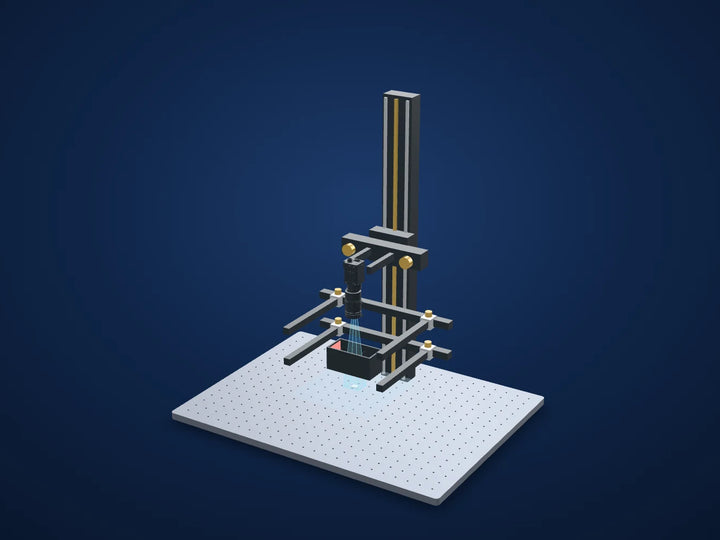

Plastic shell edge break
Separate the part's designed steps from real edge loss before setting a limit.Light in sourceLS-CXL-0201 · redExplore the study
Other models in the Coaxial light (LS-CXL-S28) series
See all 12 models| Model | Emitting area | Power, red | Price | Availability | Link |
|---|---|---|---|---|---|
| LS-CXL-0192This model | 140 x 140 mm | 25 W | $739.00 | Ships in 2-3 weeks | |
| LS-CXL-0186 | 30 x 30 mm | 2 W | $149.00 | Ships in 2-3 weeks | View |
| LS-CXL-0187 | 40 x 40 mm | 3 W | $179.00 | Ships in 2-3 weeks | View |
| LS-CXL-0188 | 60 x 60 mm | 5 W | $269.00 | Ships in 2-3 weeks | View |
| LS-CXL-0189 | 80 x 80 mm | 6.5 W | $369.00 | Ships in 2-3 weeks | View |
| LS-CXL-0190 | 100 x 100 mm | 12 W | $479.00 | Ships in 2-3 weeks | View |
| LS-CXL-0191 | 120 x 120 mm | 19 W | $609.00 | Ships in 2-3 weeks | View |
| LS-CXL-0194 | 180 x 100 mm | 30 W | $1,029.00 | Ships in 2-3 weeks | View |
| LS-CXL-0195 | 180 x 130 mm | 48 W | $1,039.00 | Ships in 2-3 weeks | View |
| LS-CXL-0193 | 200 x 60 mm | 12 W | $1,199.00 | Ships in 2-3 weeks | View |
| LS-CXL-0196 | 290 x 110 mm | 35 W | $2,159.00 | Ships in 2-3 weeks | View |
| LS-CXL-0197 | 300 x 200 mm | 50.4 W | $2,329.00 | Ships in 2-3 weeks | View |
